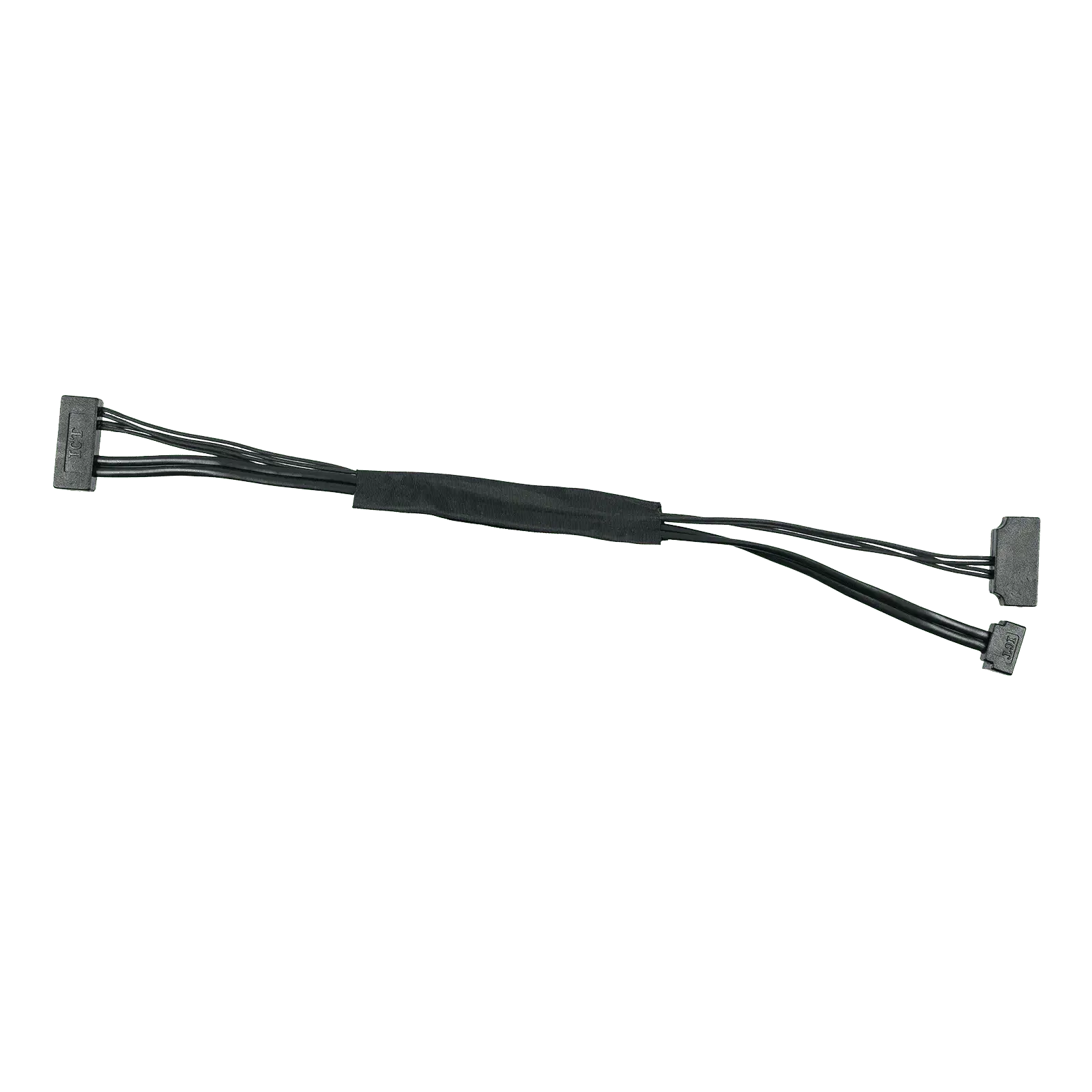

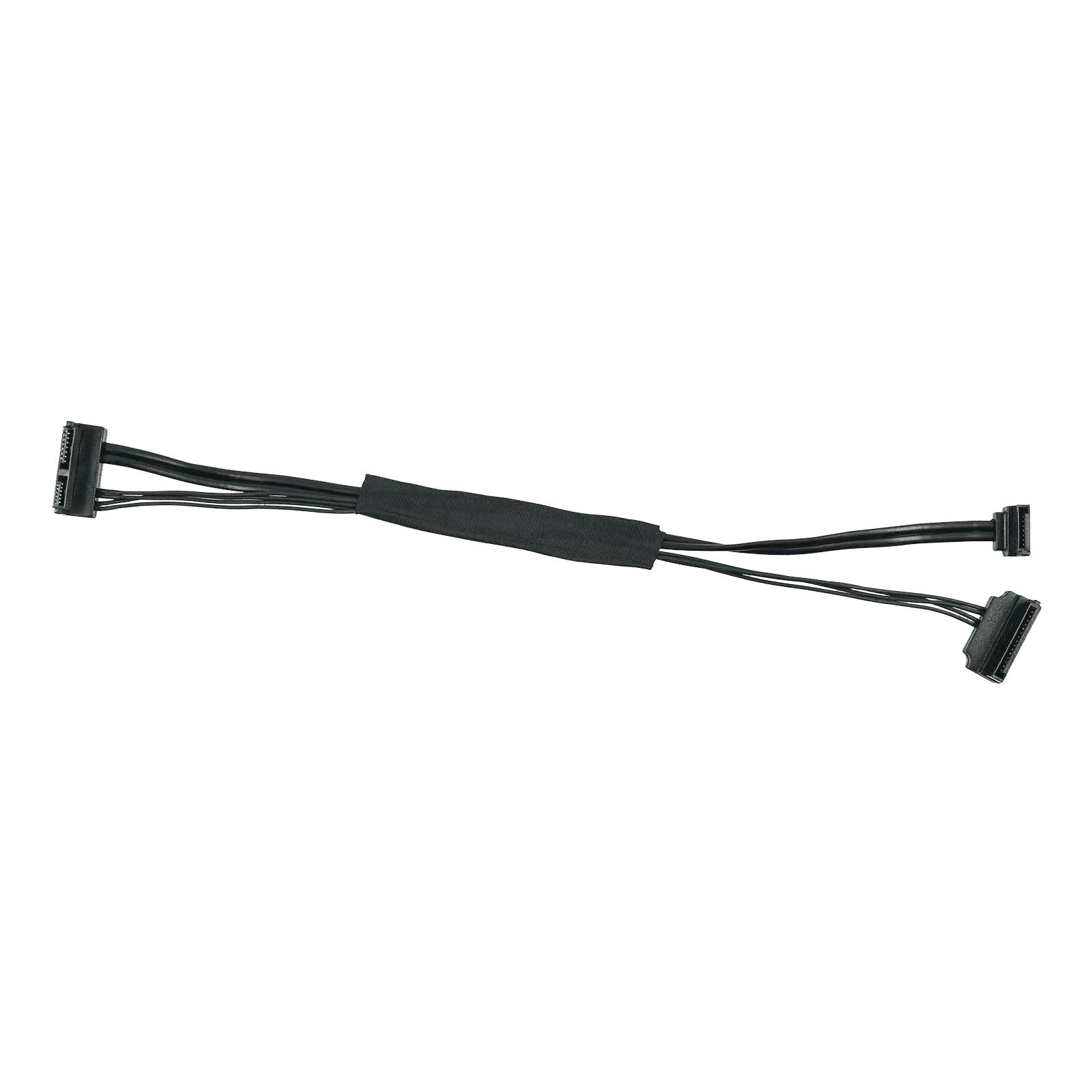

SSD SATA Power/Data Cable



$14.75 – $15.90

Clear
SKU: E9CF-P00 Categories: , , , ,

Description

  • This cable is used for iMacs that were configured with a 2.5" SATA SSD and connects to the typically unused SATA connector on the logic board, located directly above the ODD SATA connector.
  • You can also use this cable to add a 2.5" SATA hard drive or SSD to an iMac that only has a standalone 3.5" hard drive.
  • As expected, this cable and the SATA connector reserved for the SSD support 6.0Gb/s SATA 3 speed.

What's Included

  • 1 - SSD SATA Power/Data Cable

Identifying Numbers

  • APN : 922-9875

    Apple Part Numbers

    • Created for internal Apple use.
    • Never visible on the item.

  • PPN : 593-1330-B

    Printed Part Numbers

    • Created by manufacturers during production.
    • Always visible on the item.

Warranty

Compatibility

Find your device to verify compatibility.

Not Compatible

Compatible

{{device.apple_device}}

{{device.apple_device}}
Model Number: {{formatString(device.model_number)}}
Order Number: {{formatString(device.order_number)}}
Model Identifier: {{formatString(device.model_identifier)}}
EMC Number: {{formatString(device.emc_number)}}
Notes: {{device.notes}}

No devices found

iMac 27" A1312
  • iMac12,2 Mid 2011: MC813LL/A (2.7 GHz Core i5)
  • iMac12,2 Mid 2011: MC814LL/A (3.1 GHz Core i5)
  • iMac12,2 Mid 2011: MD063LL/A (3.4 GHz Core i7)
