Logic Board (3.0GHz i7, 8GB)

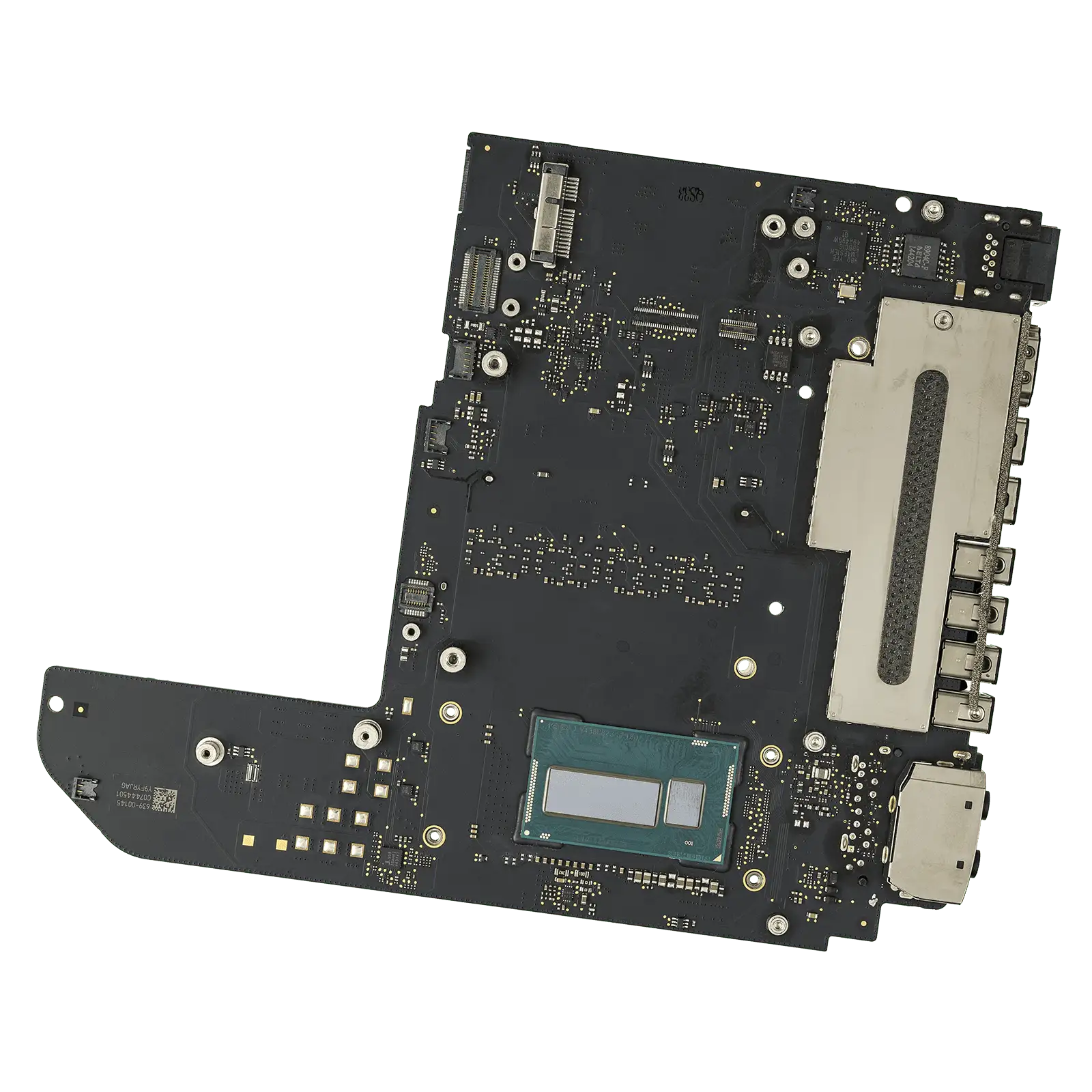

Mac mini A1347 2014 Logic Board Top

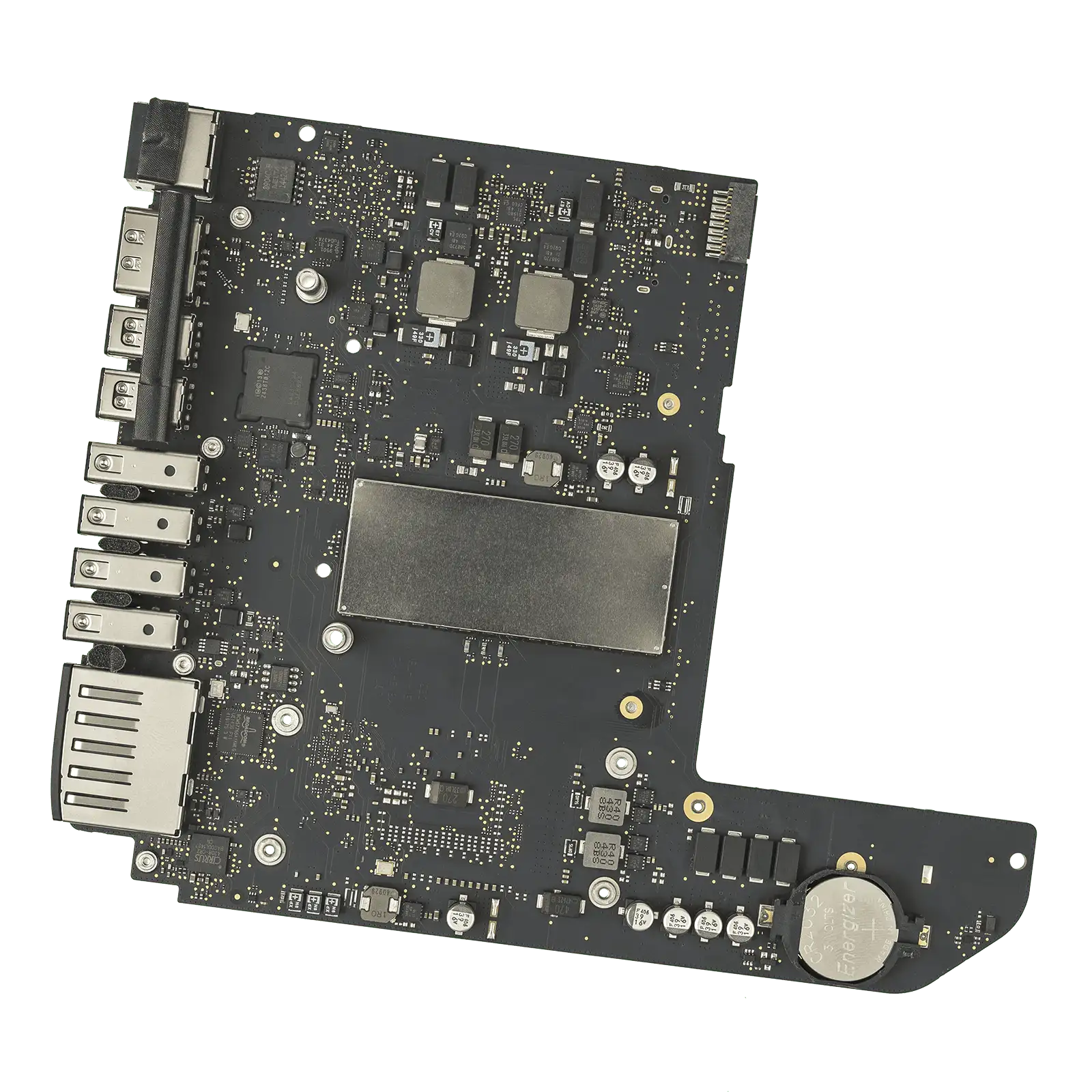

Mac mini A1347 2014 Logic Board Underside
Used condition

$150.25

Free shipping

Out of stock

SKU: 0340-U00 Categories: , , , , Tag:

Description

  • This logic board includes an upgraded onboard 3.0GHz Core i7 (i7-4578U) processor and 8GB of onboard 1600MHz LPDDR3 memory.
  • Compatible with all Late 2014 Mac mini computers.

What's included

  • 1 - Logic board

Part numbers

  • APN : 661-01025

    Apple part numbers

    • Created for internal Apple use.
    • Never visible on the item.

  • PPN : 639-00142, 820-5509-A, i7-4578U

    Printed part numbers

    • Created by manufacturers during production.
    • Always visible on the item.

Tech specs

  • Onboard CPU: 3.0GHz Intel Core i7-4578U
  • Onboard GPU: Intel Iris 5100
  • Onboard RAM: 8GB 1600 MHz LPDDR3 SDRAM
  • USB Ports: Four (4) 3.0
  • Thunderbolt Ports: Two (2)
  • Expansion Slots: SDXC card

Warranty

Lifetime - For as long as you own it.

Compatibility

Find your device to check compatibility.

Not compatible

Compatible

{{device.device_name}}

{{device.device_name}}
Model number: {{formatString(device.model_number)}}
Order number: {{formatString(device.order_number)}}
Model identifier: {{formatString(device.model_identifier)}}
EMC number: {{formatString(device.emc_number)}}
Notes: {{device.notes}}

{{ error }}

No devices found

Mac mini A1347
  • Macmini7,1 Late 2014: MGEM2LL/A (1.4 GHz Core i5)
  • Macmini7,1 Late 2014: MGEN2LL/A (2.6 GHz Core i5)
  • Macmini7,1 Late 2014: MGEQ2LL/A (2.8 GHz Core i5)
  • Macmini7,1 Late 2014: BTO (3.0 GHz Core i7)
