Logic Board (1.4GHz i5, 8GB)

Used Condition



Out of stock

Notify me when item is back in stock

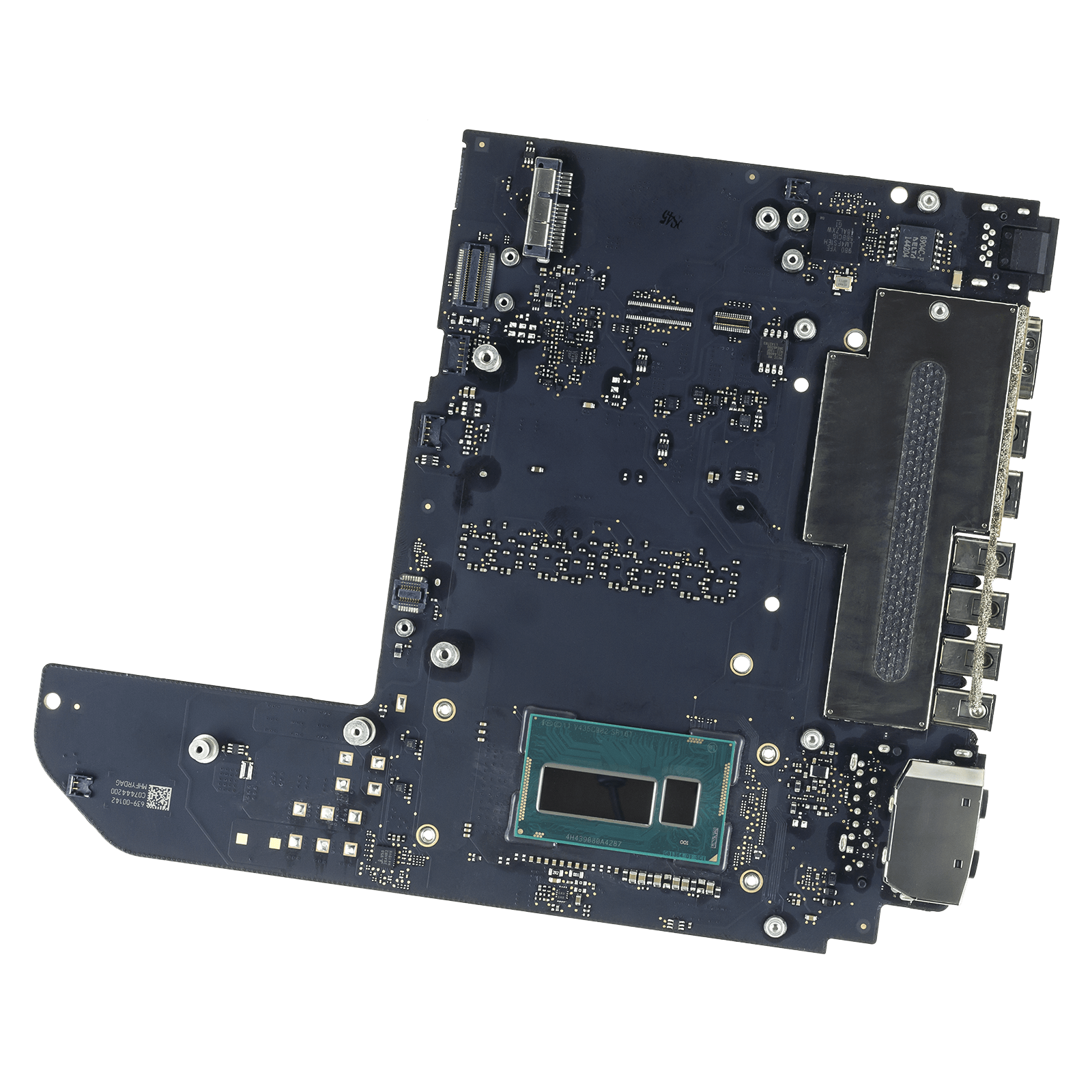

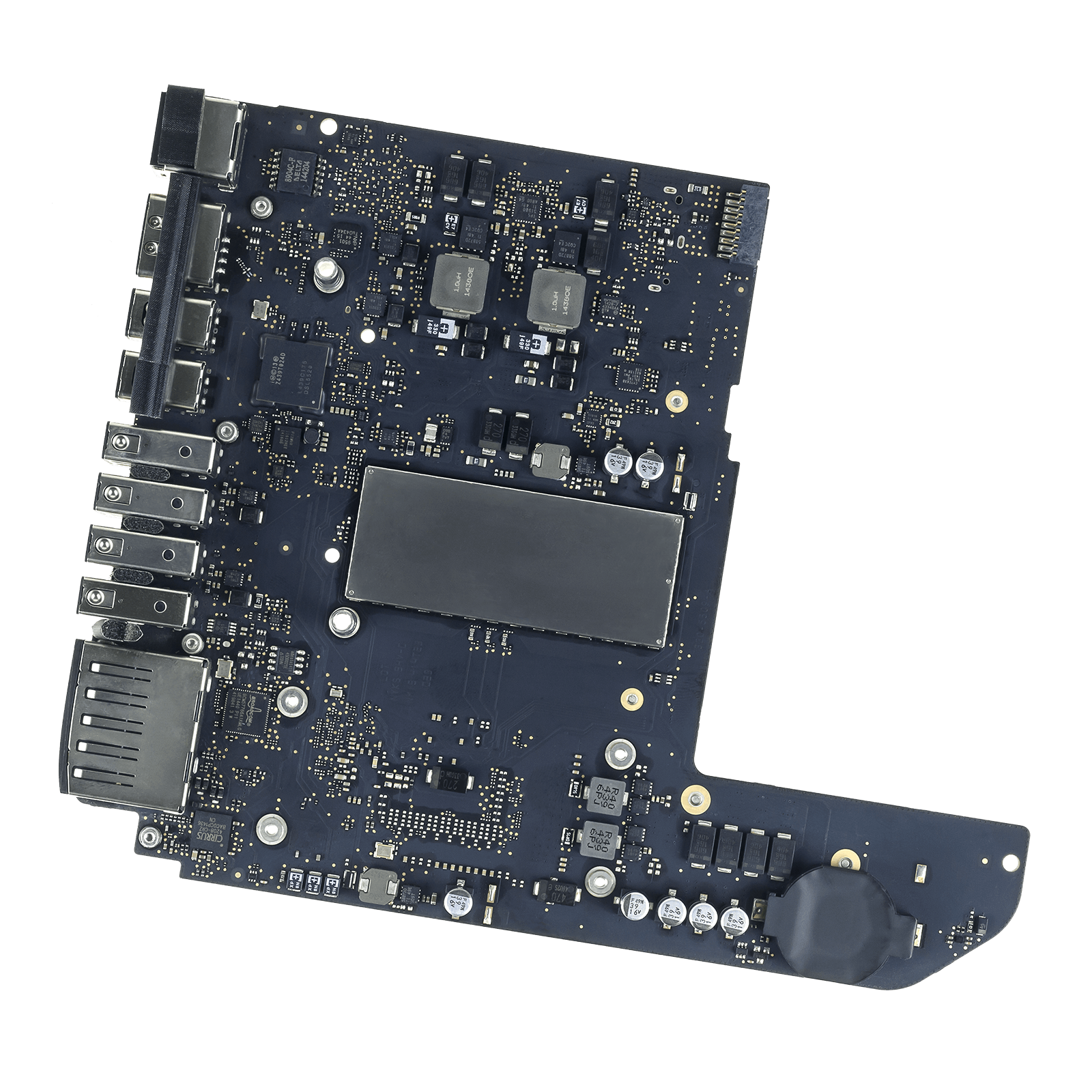

  • This logic board includes an onboard 1.4GHz Core i5 (i5-4260U) processor and 8GB of onboard 1600MHz LPDDR3 memory.

What's Included

  • 1 - Logic board

Identifying Numbers

  • APN : 661-01022

    Apple Part Numbers

    • Created for internal Apple use.
    • Never visible on the item.
  • PPN : 639-00142, 820-5509-A

    Printed Part Numbers

    • Created by manufacturers during production.
    • Always visible on the item.

Tech Specs

  • Onboard CPU: 1.4GHz Intel Core i5-4260U
  • Onboard GPU: Intel HD Graphics 5000
  • Onboard RAM: 8GB 1600MHz LPDDR3 SDRAM

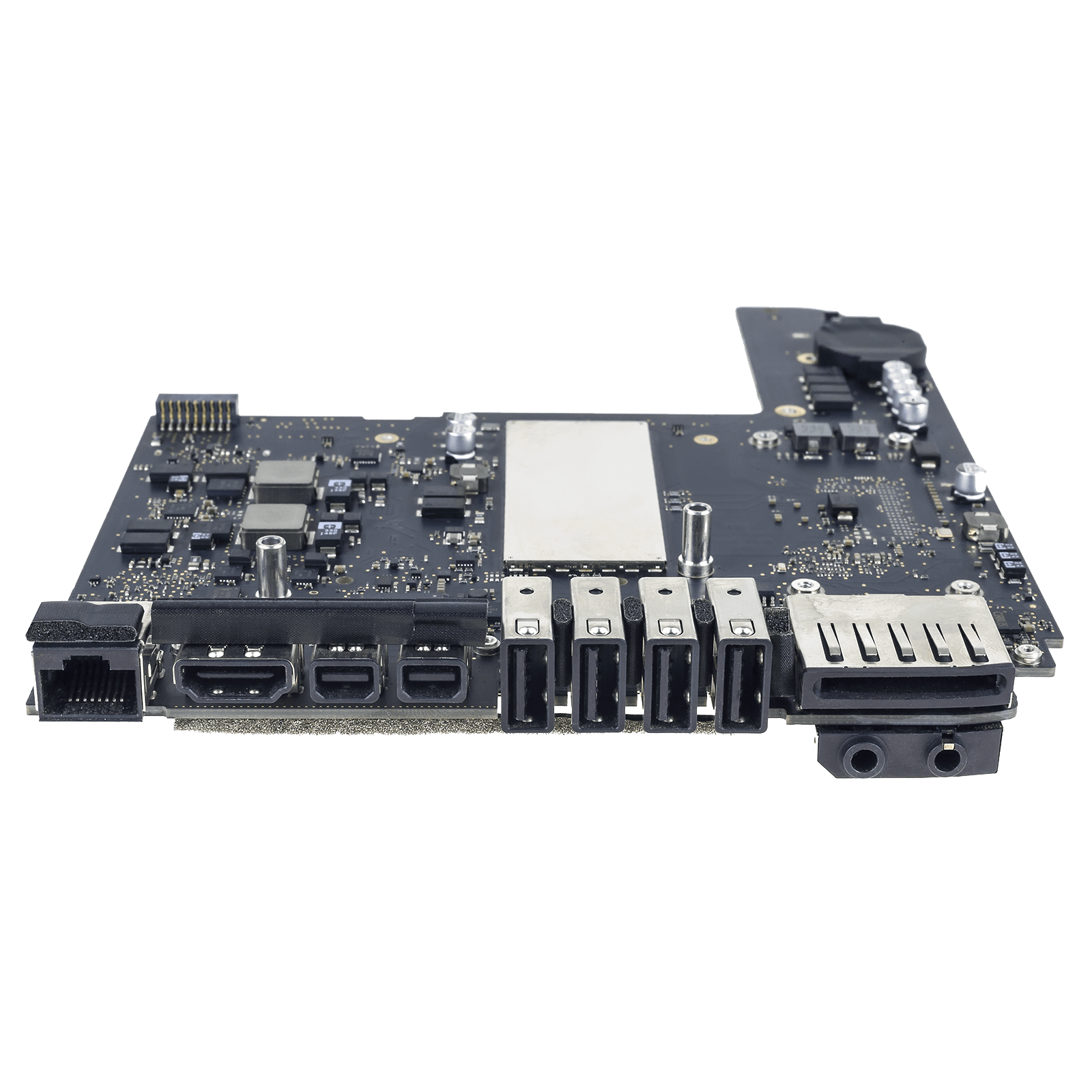

  • Ports: Two Thunderbolt 2, Four USB 3.0, One HDMI, One Gigabit Ethernet, & One SDXC SD card slot


Lifetime - We guarantee this product for as long as you have it.


Find your device to verify compatibility.

Not Compatible




Model Number: {{formatString(device.model_number)}}
Order Number: {{formatString(device.order_number)}}
Model Identifier: {{formatString(device.model_identifier)}}
EMC Number: {{formatString(device.emc_number)}}
Notes: {{device.notes}}

No devices found

Mac mini Unibody A1347
  • Macmini7,1 Late 2014: MGEM2LL/A (1.4 GHz Core i5)
  • Macmini7,1 Late 2014: MGEN2LL/A (2.6 GHz Core i5)
  • Macmini7,1 Late 2014: MGEQ2LL/A (2.8 GHz Core i5)
  • Macmini7,1 Late 2014: MGEQ2LL/A (3.0 GHz Core i7)
