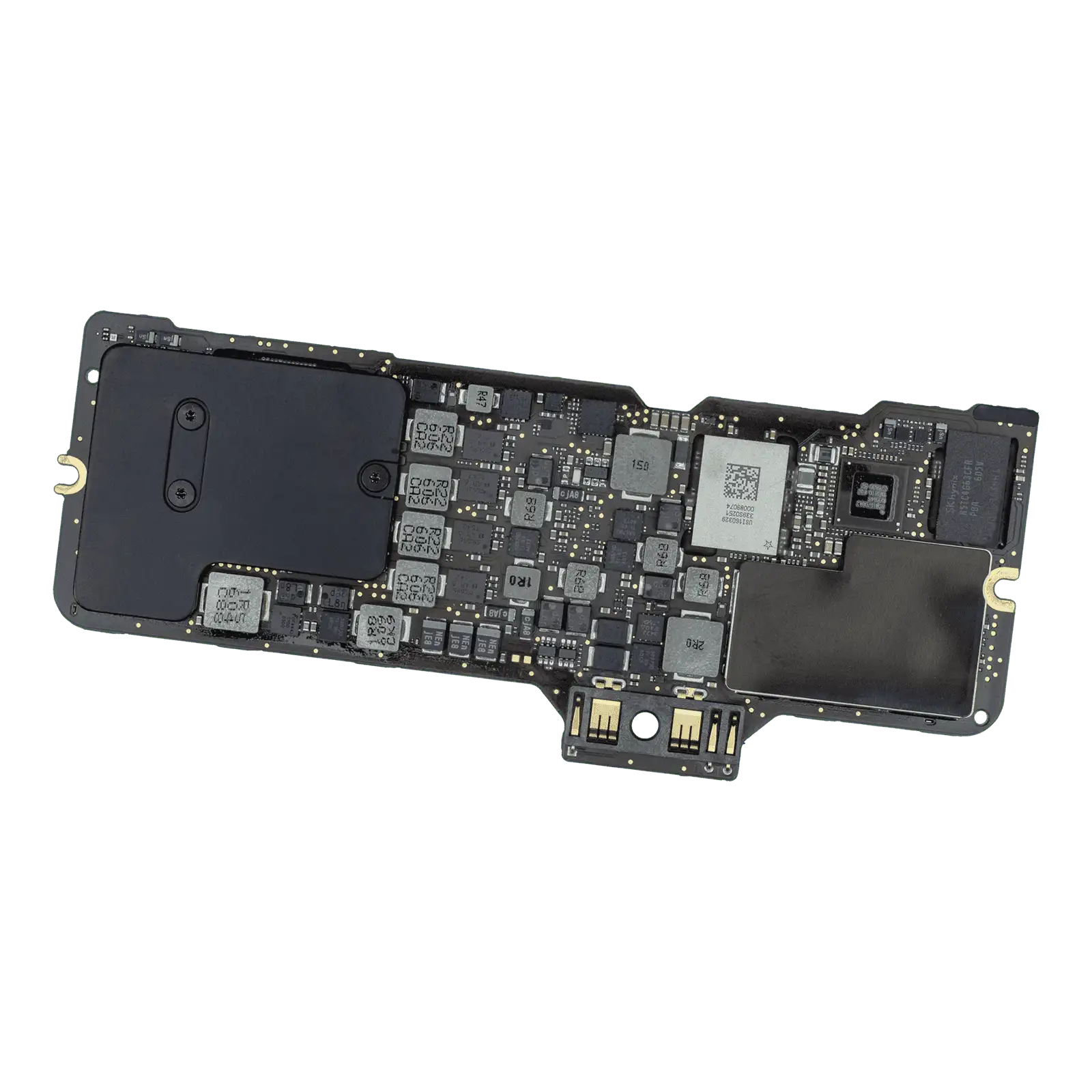

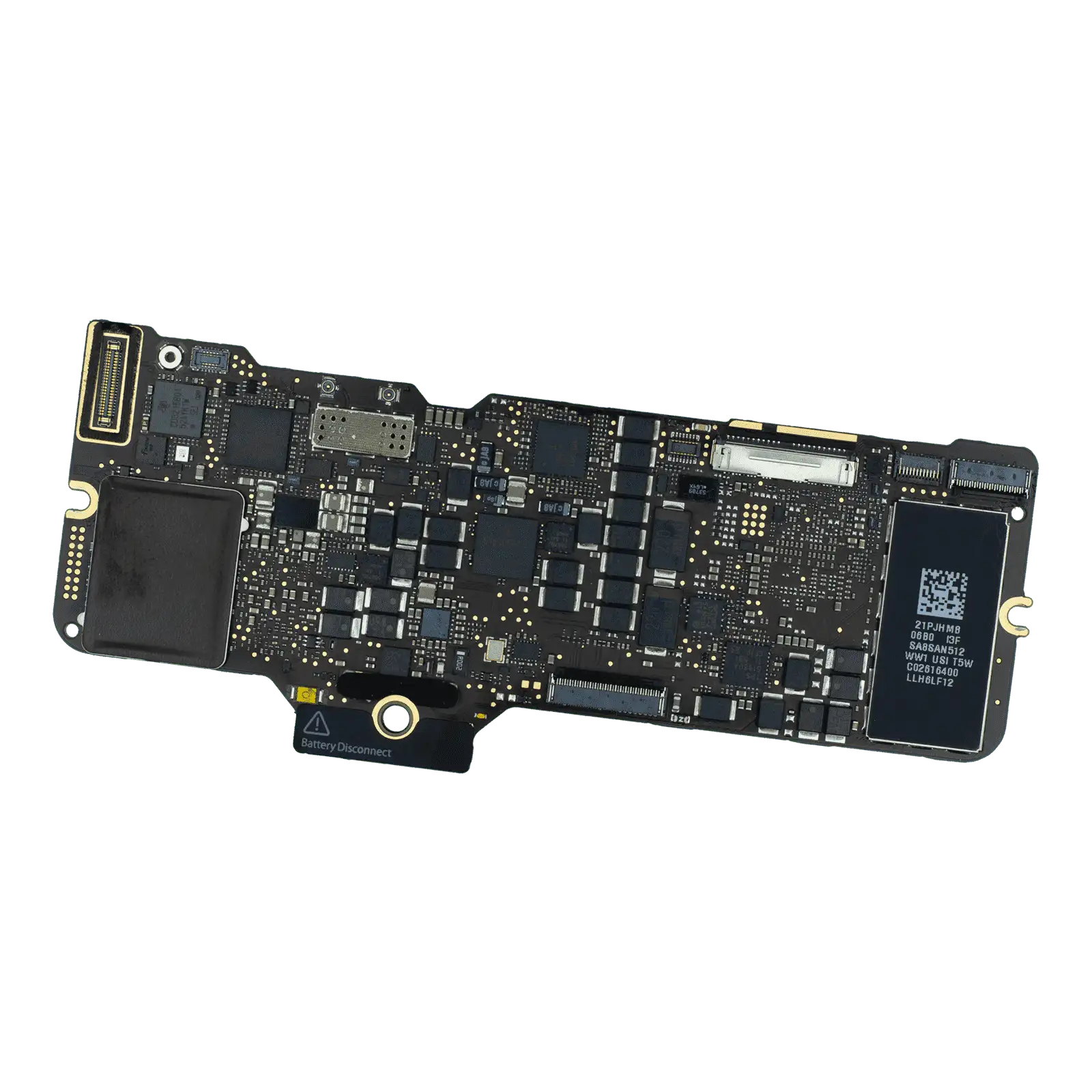

Logic Board



$159.20$253.20

Clear

Description

  • There are multiple logic board options available for the Early 2016 release and all are cross-compatible with one another.
  • The processor, memory, and SSD storage are soldered to the board so the only way to upgrade is by replacing the entire logic board.

What's Included

  • 1 - Logic board
  • 1 - Heatsink

Identifying Numbers

  • APN : 661-04728, 661-04729, 661-04730, 661-04737

    Apple Part Numbers

    • Created for internal Apple use.
    • Never visible on the item.
  • PPN : 820-00244-08, 820-00244-A

    Printed Part Numbers

    • Created by manufacturers during production.
    • Always visible on the item.

Tech Specs

  • Onboard CPU: 1.1GHz, 1.2GHz , or 1.3GHz Intel Core m
  • Onboard GPU: Intel HD Graphics 515
  • Onboard RAM: 8GB LPDDR3 (1600MHz)
  • Onboard SSD: 256GB or 512GB PCIe

Warranty

Compatibility

Find your device to verify compatibility.

Not Compatible

Compatible

{{device.apple_device}}

{{device.apple_device}}

Model Number: {{formatString(device.model_number)}}
Order Number: {{formatString(device.order_number)}}
Model Identifier: {{formatString(device.model_identifier)}}
EMC Number: {{formatString(device.emc_number)}}
Notes: {{device.notes}}

No devices found

MacBook 12" Retina A1534
  • MacBook9,1 Early 2016 (Silver): MLHA2LL/A (1.1 GHz Core M3)
  • MacBook9,1 Early 2016 (Space Grey): MLH72LL/A (1.1 GHz Core M3)
  • MacBook9,1 Early 2016 (Gold): MLHE2LL/A (1.1 GHz Core M3)
  • MacBook9,1 Early 2016 (Rose Gold): MMGL2LL/A (1.1 GHz Core M3)
  • MacBook9,1 Early 2016 (Silver): MLHC2LL/A (1.2 GHz Core M5)
  • MacBook9,1 Early 2016 (Space Grey): MLH82LL/A (1.2 GHz Core M5)
  • MacBook9,1 Early 2016 (Gold): MLHF2LL/A (1.2 GHz Core M5)
  • MacBook9,1 Early 2016 (Rose Gold): MMGM2LL/A (1.2 GHz Core M5)
  • MacBook9,1 Early 2016 (Silver): BTO/CTO (1.3 GHz Core M7)
  • MacBook9,1 Early 2016 (Space Grey): BTO/CTO (1.3 GHz Core M7)
  • MacBook9,1 Early 2016 (Gold): BTO/CTO (1.3 GHz Core M7)
  • MacBook9,1 Early 2016 (Rose Gold): BTO/CTO (1.3 GHz Core M7)
