LVDS Display Connector (30-pin)

LCD LVDS Cable Connector (30 pin)

LCD LVDS Cable Connector (30 pin)

LCD LVDS Cable Connector (30 pin)

LCD LVDS Cable Connector (30 pin)

LCD LVDS Cable Connector (30 pin)

New condition

$5.75

Out of stock

Description

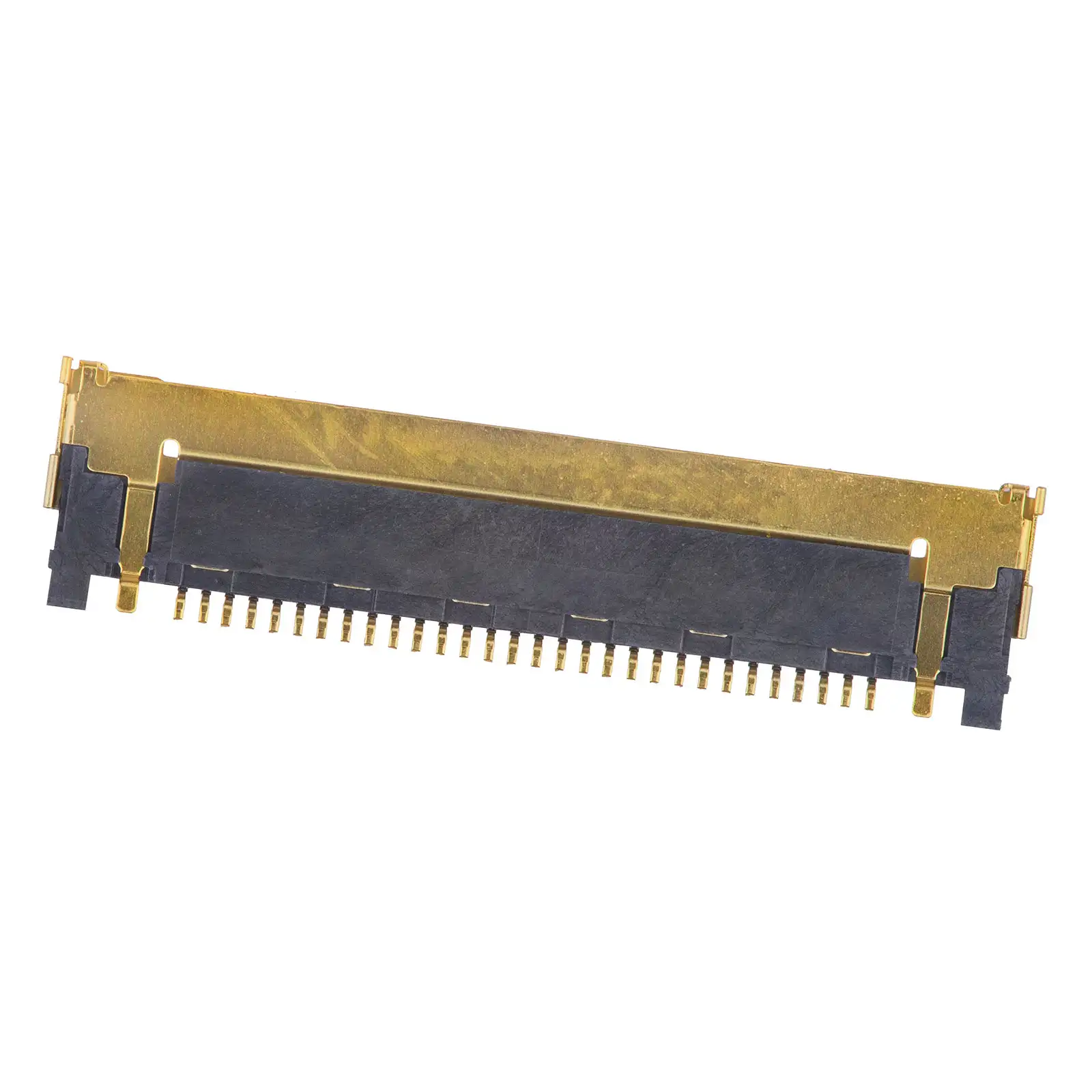

This 30-pin LVDS connector is the connector on the logic board for the attachment of the LCD display assembly.

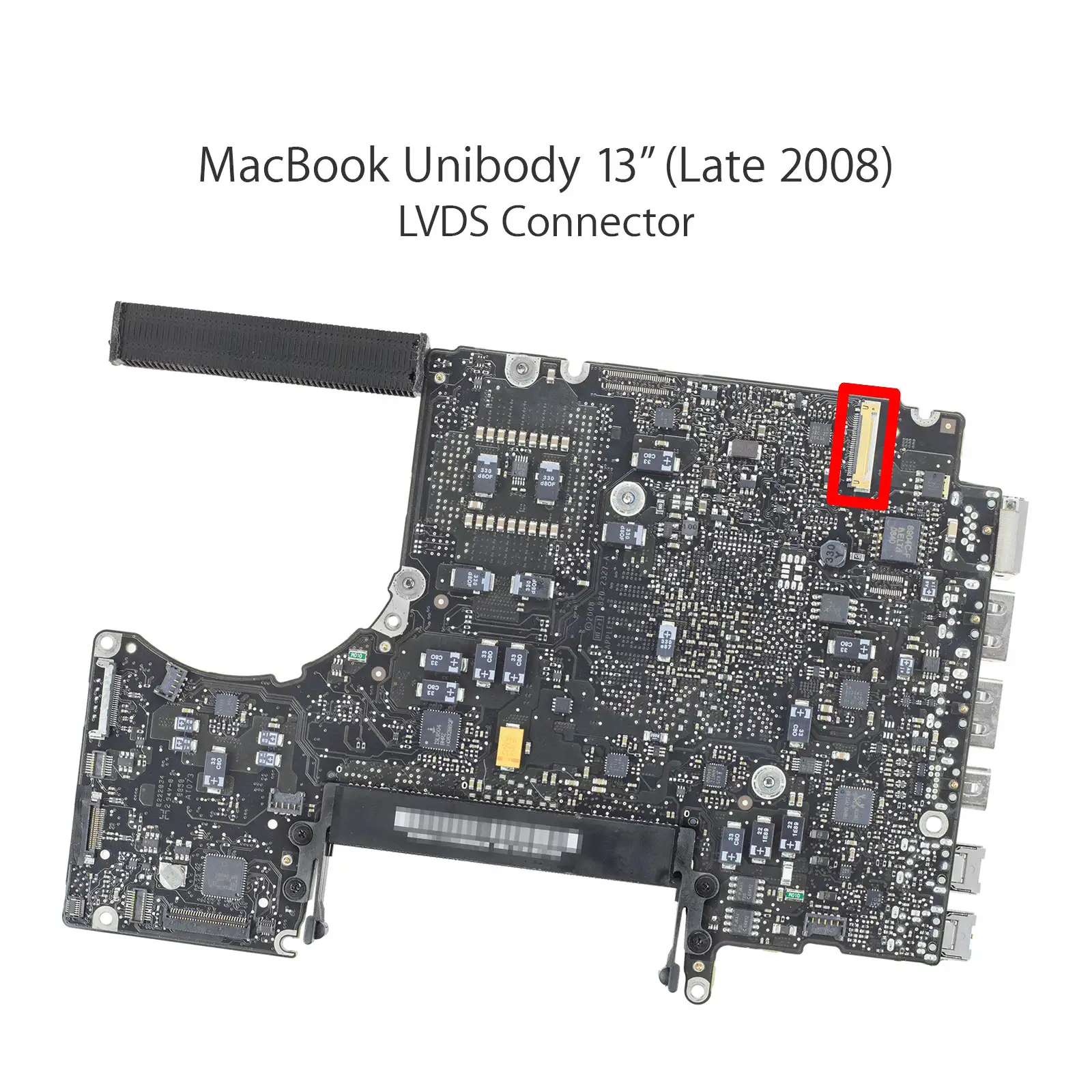

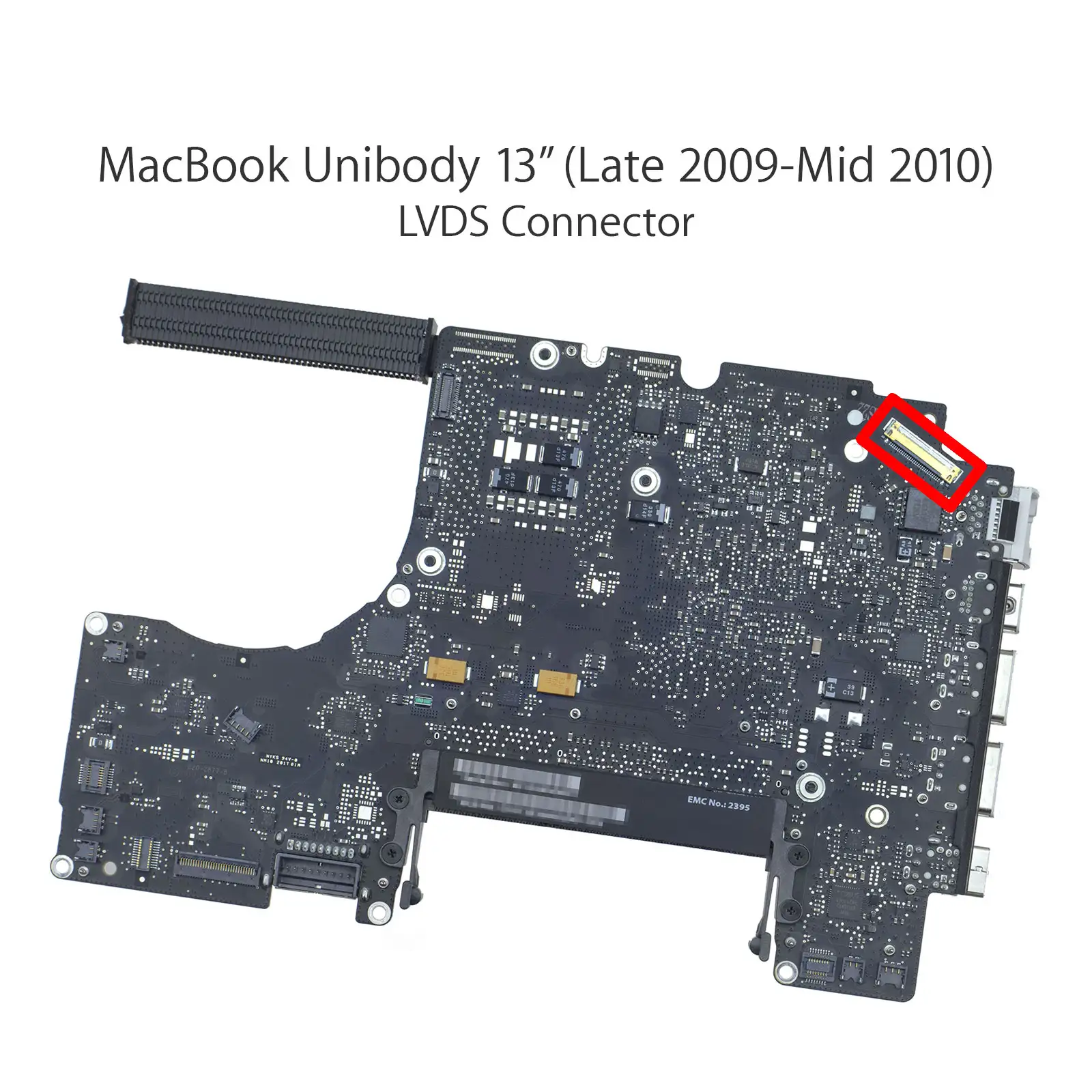

Can be identified as J9000 and APN 518S0650 in schematic diagrams and board view files.
Installation requires soldering equipment and skills.

What's included

1 - LVDS Display Connector (30-pin)

Part numbers

APN : 518S0650
Apple part numbers
- Created for internal Apple use.
- Never visible on the item.
PPN : 20474-030E-11
Printed part numbers
- Created by manufacturers during production.
- Always visible on the item.

Tech specs

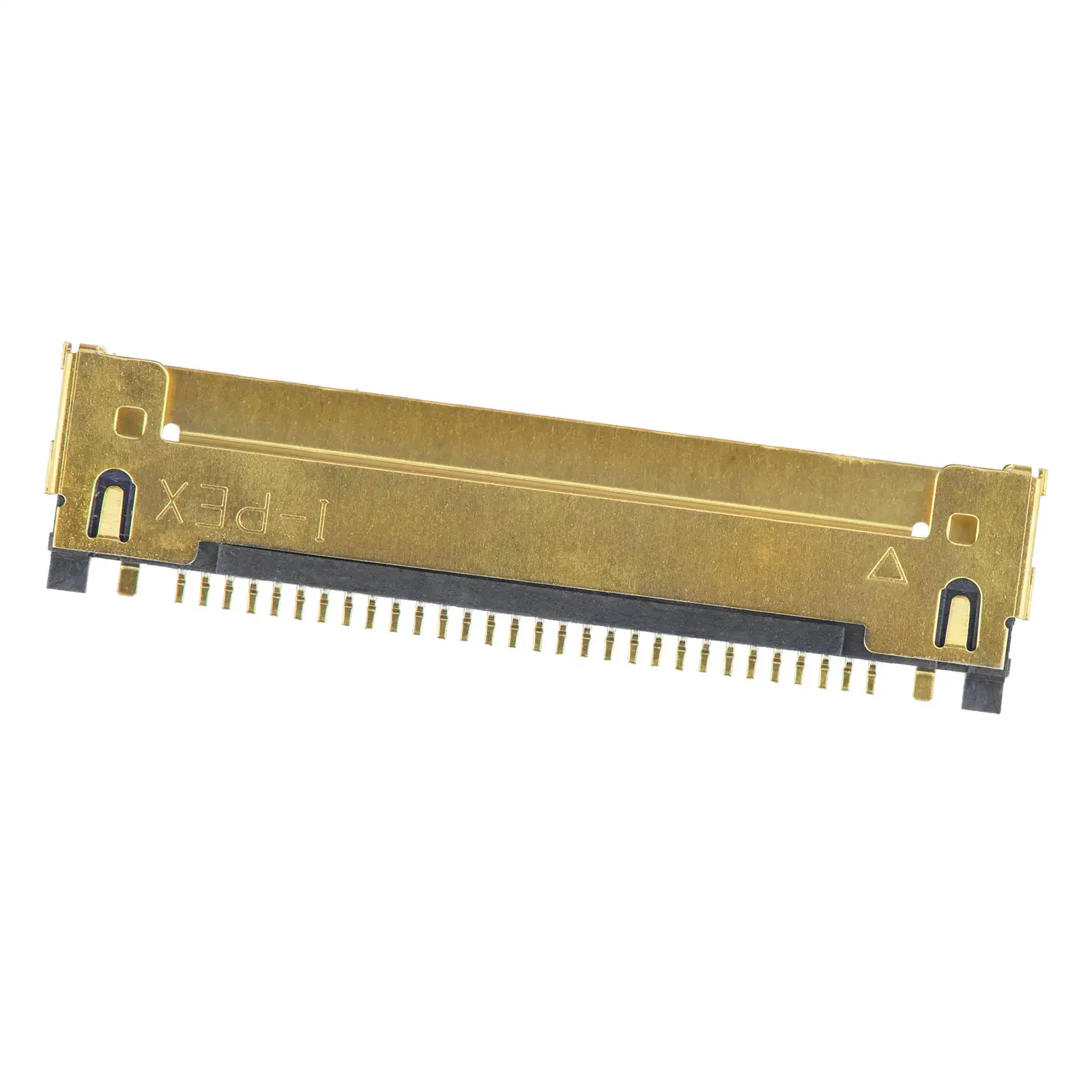

Brand: I-PEX
Connector Type: Receptacle
Connector Material: Copper Alloy
Gender: Female
Mounting Type: Surface Mount, Right Angle
Number of Positions: 30 pin
Style: Board to Cable/Wire

Warranty

No warranty - Made to be used up.

Compatibility

Find your device to check compatibility.

Not compatible

Compatible

{{device.device_name}}

{{device.device_name}}

Model number: {{formatString(device.model_number)}}

Order number: {{formatString(device.order_number)}}

Model identifier: {{formatString(device.model_identifier)}}

EMC number: {{formatString(device.emc_number)}}

Notes: {{device.notes}}

View all parts for this device

{{ error }}

No devices found

MacBook 13" A1278

MacBook5,1 Unibody Late 2008: MB466LL/A (2.0 GHz Core 2 Duo)
MacBook5,1 Unibody Late 2008: MB467LL/A (2.4 GHz Core 2 Duo)

MacBook 13" A1342

MacBook6,1 Late 2009: MC207LL/A (2.26 GHz Core 2 Duo)
MacBook7,1 Mid 2010: MC516LL/A (2.4 GHz Core 2 Duo)

MacBook Pro 13" A1278

MacBookPro5,5 Unibody Mid 2009: MB990LL/A (2.26 GHz Core 2 Duo)
MacBookPro5,5 Unibody Mid 2009: MB991LL/A (2.53 GHz Core 2 Duo)
MacBookPro7,1 Unibody Mid 2010: MC374LL/A (2.4 GHz Core 2 Duo)
MacBookPro7,1 Unibody Mid 2010: MC375LL/A (2.66 GHz Core 2 Duo)
MacBookPro8,1 Unibody Early 2011: MC700LL/A (2.3 GHz Core i5)
MacBookPro8,1 Unibody Early 2011: MC724LL/A (2.7 GHz Core i7)
MacBookPro8,1 Unibody Late 2011: MD313LL/A (2.4 GHz Core i5)
MacBookPro8,1 Unibody Late 2011: MD314LL/A (2.8 GHz Core i7)
