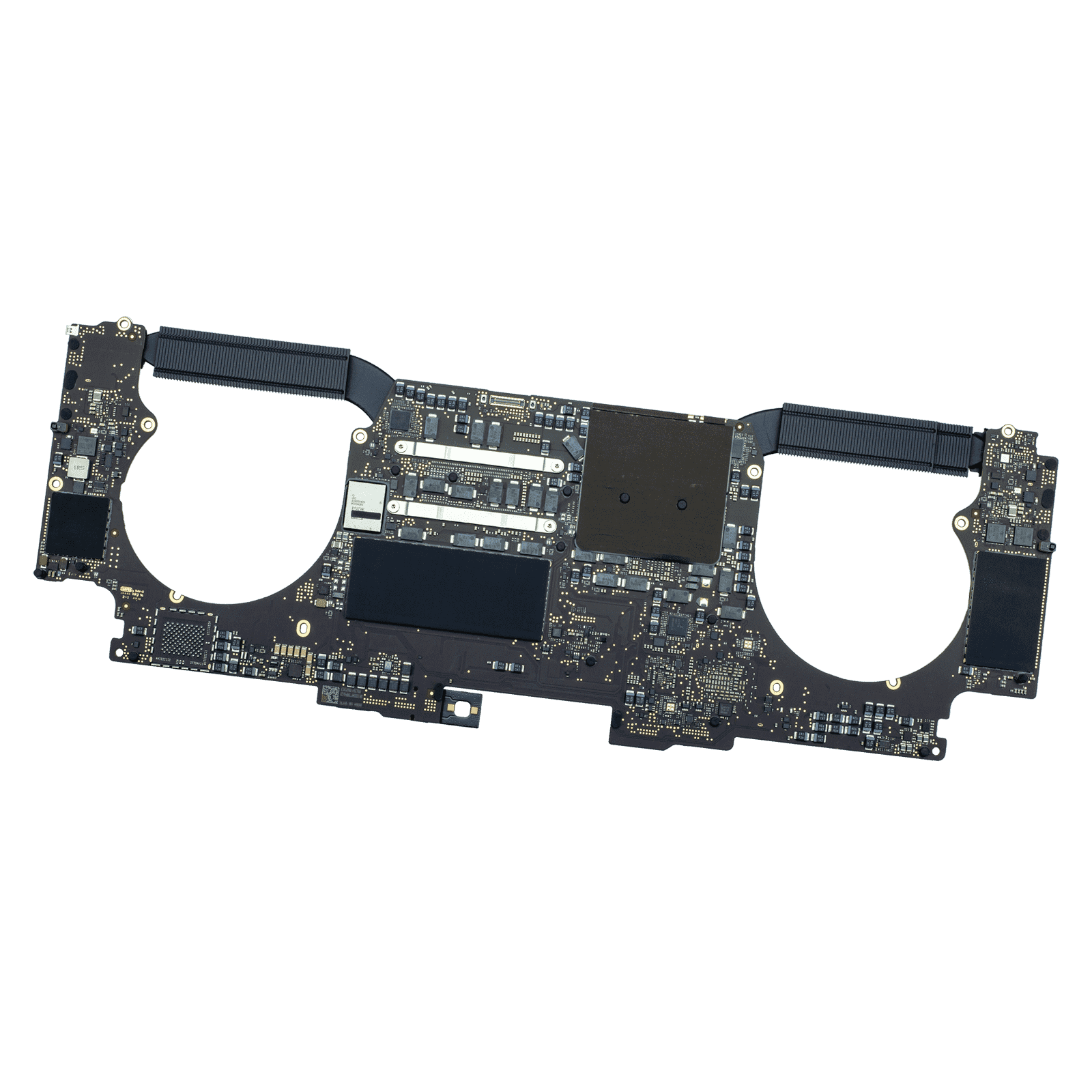

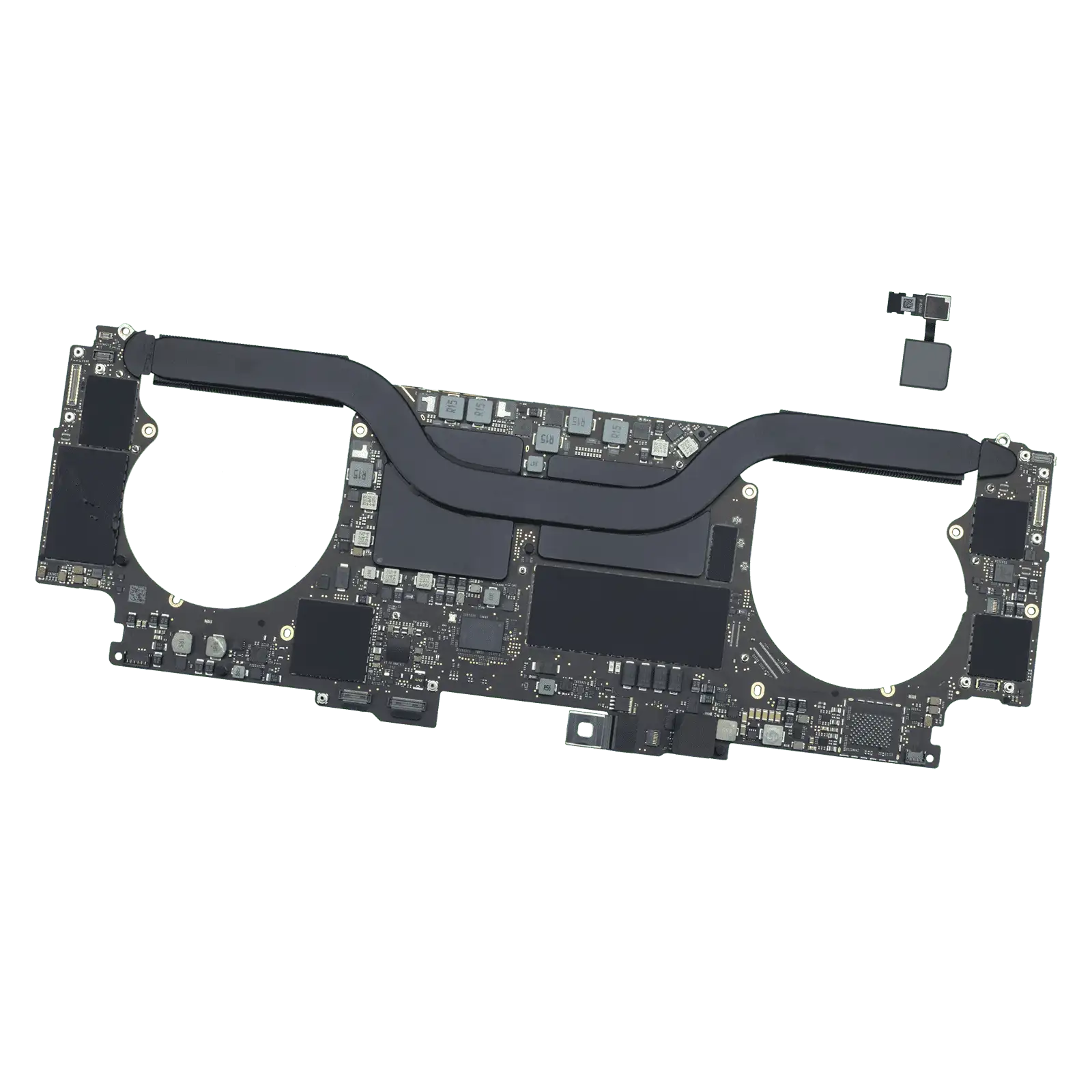

Logic Board



$369.45

Clear
SKU: 8DF6-P00 Categories: , , , , , , Tag:

Description

  • Replacement logic board with onboard processor, memory, flash storage, and graphics.
  • Each board also includes a paired Touch ID power button.
  • Each Touch ID power button is programmed to function with the original logic board and cannot be reprogrammed, so you must replace the Touch ID button when replacing the logic board.
  • The boards options on this page were originally available in the 2019 release of the model A1990, but are fully compatible with the 2018 release as well.

What's Included

  • 1 - Logic Board
  • 1 - Heatsink
  • 1 - Touch ID Power Button

Identifying Numbers

  • APN : 661-12874

    Apple Part Numbers

    • Created for internal Apple use.
    • Never visible on the item.

  • PPN : 820-01814-01, 820-01814-A

    Printed Part Numbers

    • Created by manufacturers during production.
    • Always visible on the item.

Tech Specs

  • Onboard CPU: 2.6GHz Intel Core i7-9750H, 2.3GHz Core i9-9880H, or 2.4GHz Core i9-9980HK
  • Onboard GPU: AMD Radeon Pro 555X, 560X, Vega 16, or Vega 20
  • Onboard RAM: 16GB or 32GB DDR4 (2400MHz)
  • Onboard SSD: 256GB, 512GB, 1TB, 2TB, or 4TB

Warranty

Compatibility

Find your device to verify compatibility.

Not Compatible

Compatible

{{device.apple_device}}

{{device.apple_device}}
Model Number: {{formatString(device.model_number)}}
Order Number: {{formatString(device.order_number)}}
Model Identifier: {{formatString(device.model_identifier)}}
EMC Number: {{formatString(device.emc_number)}}
Notes: {{device.notes}}

No devices found

MacBook Pro 15" A1990
  • MacBookPro15,1 Mid 2018: MR932LL/A or MR962LL/A (2.2 GHz Core i7)
  • MacBookPro15,1 Mid 2018: MR942LL/A or MR972LL/A (2.6 GHz Core i7)
  • MacBookPro15,3 Mid 2018: BTO/CTO (2.6 GHz Core i7)
  • MacBookPro15,3 Mid 2018: BTO/CTO (2.9 GHz Core i9)
  • MacBookPro15,1 Mid 2019: MV902LL/A|MV922LL/A (2.6 GHz Core i7)
  • MacBookPro15,1 Mid 2019: MV912LL/A|MV932LL/A (2.3 GHz Core i9)
  • MacBookPro15,1 Mid 2019: BTO (2.4 GHz Core i9)
  • MacBookPro15,3 Mid 2019: BTO (2.3 GHz Core i9)
  • MacBookPro15,3 Mid 2019: BTO (2.4 GHz Core i9)
