Top Case with Battery, Space Gray

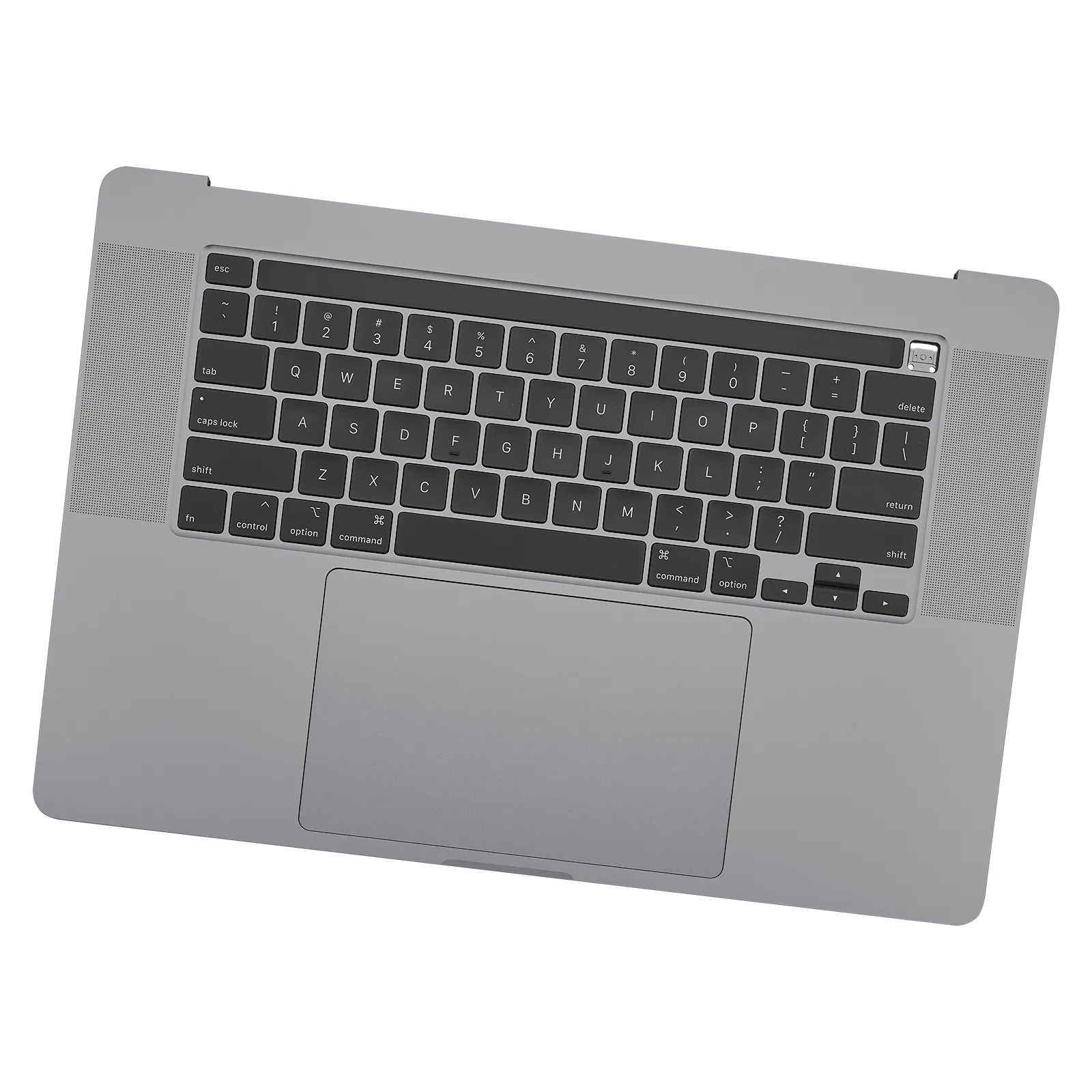

MacBook Pro 16" A2141 Space Gray Top Case Front

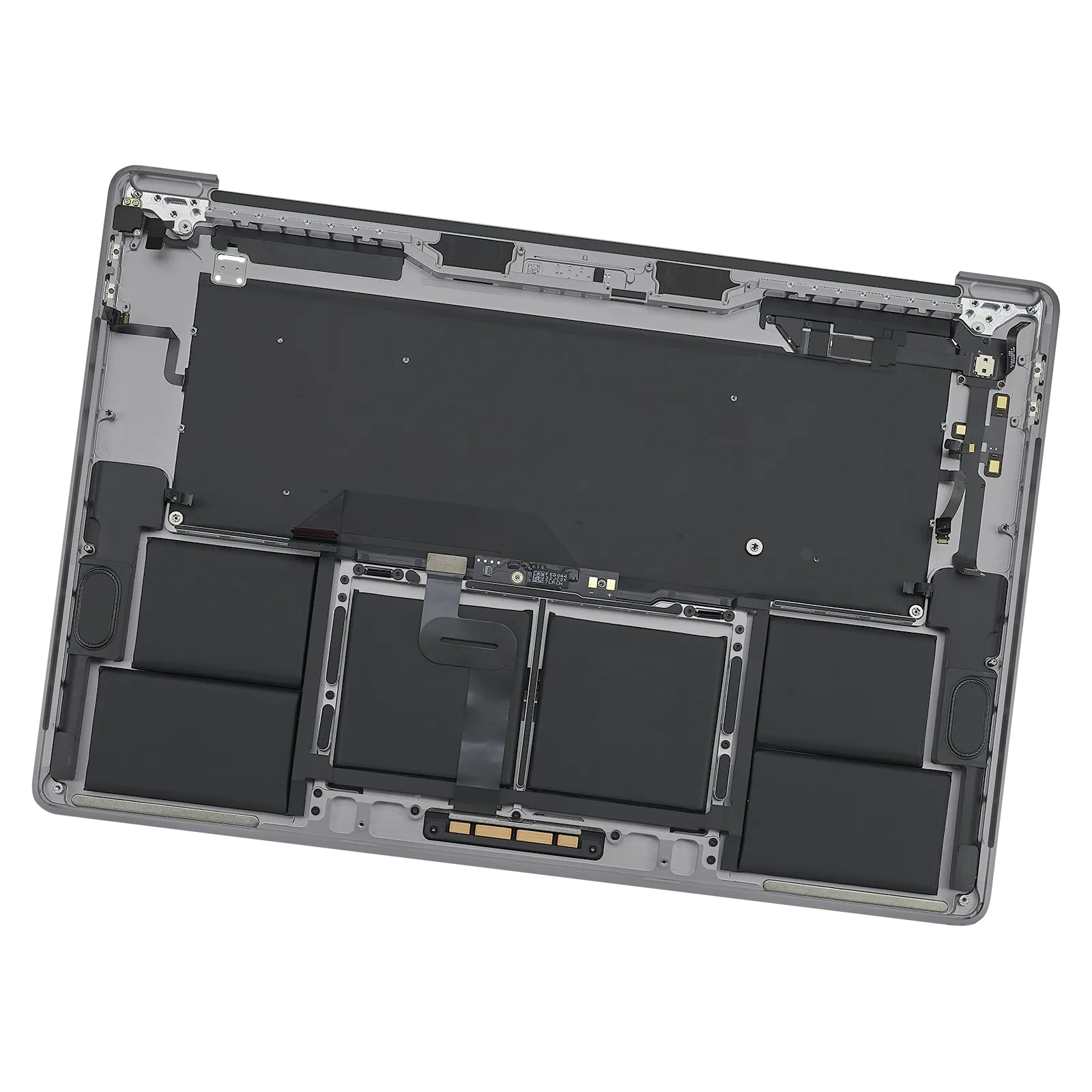

MacBook Pro 16" A2141 Space Gray Top Case Rear
Used Condition

Price range: $145.45 through $249.70

SKU: B815-P00 Categories: , , , , Tags: ,

Description

  • This top case includes nearly everything: keyboard, Touch Bar, battery, trackpad, mic, headphone jack, speakers, a few miscellaneous cables. But still no kitchen sink.
  • Notably, the Touch ID power button is not included. The Touch ID board is programmed to to work with the original logic board, and both parts must be installed together for full Touch ID functionality.

What's Included

  • 1 - Top Case
  • 1 - Battery
  • 1 - Touch ID Flex Cable
  • 1 - Touch Bar
  • 1 - Keyboard
  • 1 - Keyboard Backlight
  • 1 - Trackpad
  • 1 - Trackpad Flex Cable
  • 1 - Microphone
  • 1 - Audio Jack
  • 1 - Microphone and Audio Jack Flex Cable
  • 1 - Left Speaker
  • 1 - Right Speaker

Identifying Numbers

  • APN : 661-13161

    Apple Part Numbers

    • Created for internal Apple use.
    • Never visible on the item.

  • PPN : 821-02250-02, 821-02250-A, 821-02306-01, 821-02306-A, 821-02317-A, 821-02425-A, 821-02522-01, 821-02522-A, A2113

    Printed Part Numbers

    • Created by manufacturers during production.
    • Always visible on the item.

Warranty

Compatibility

Find your device to verify compatibility.

Not Compatible

Compatible

{{device.device_name}}

{{device.device_name}}
Model Number: {{formatString(device.model_number)}}
Order Number: {{formatString(device.order_number)}}
Model Identifier: {{formatString(device.model_identifier)}}
EMC Number: {{formatString(device.emc_number)}}
Notes: {{device.notes}}

No devices found

MacBook Pro 16" A2141
  • MacBookPro16,1 Scissor Keyboard 2019: MVVJ2LL/A (Space Gray, 2.6 GHz Core i7)
  • MacBookPro16,1 Scissor Keyboard 2019: MVVL2LL/A (Silver, 2.6 GHz Core i7)
  • MacBookPro16,1 Scissor Keyboard 2019: MVVK2LL/A (Space Gray, 2.3 GHz Core i9)
  • MacBookPro16,1 Scissor Keyboard 2019: MVVM2LL/A (Silver, 2.3 GHz Core i9)
  • MacBookPro16,1 Scissor Keyboard 2019: BTO (2.4 GHz Core i9)
