Logic Board (2.8GHz i7)

Logic Board (2.8GHz Core i7-640M)
Logic Board (2.8GHz Core i7-640M)
Logic Board (2.8GHz Core i7-640M)
Used Condition

$239.70

FREE SHIPPING

Out of stock

Notify me when this item is back in stock.

SKU: 6189-U00 Categories: , , , , Tag:

Description

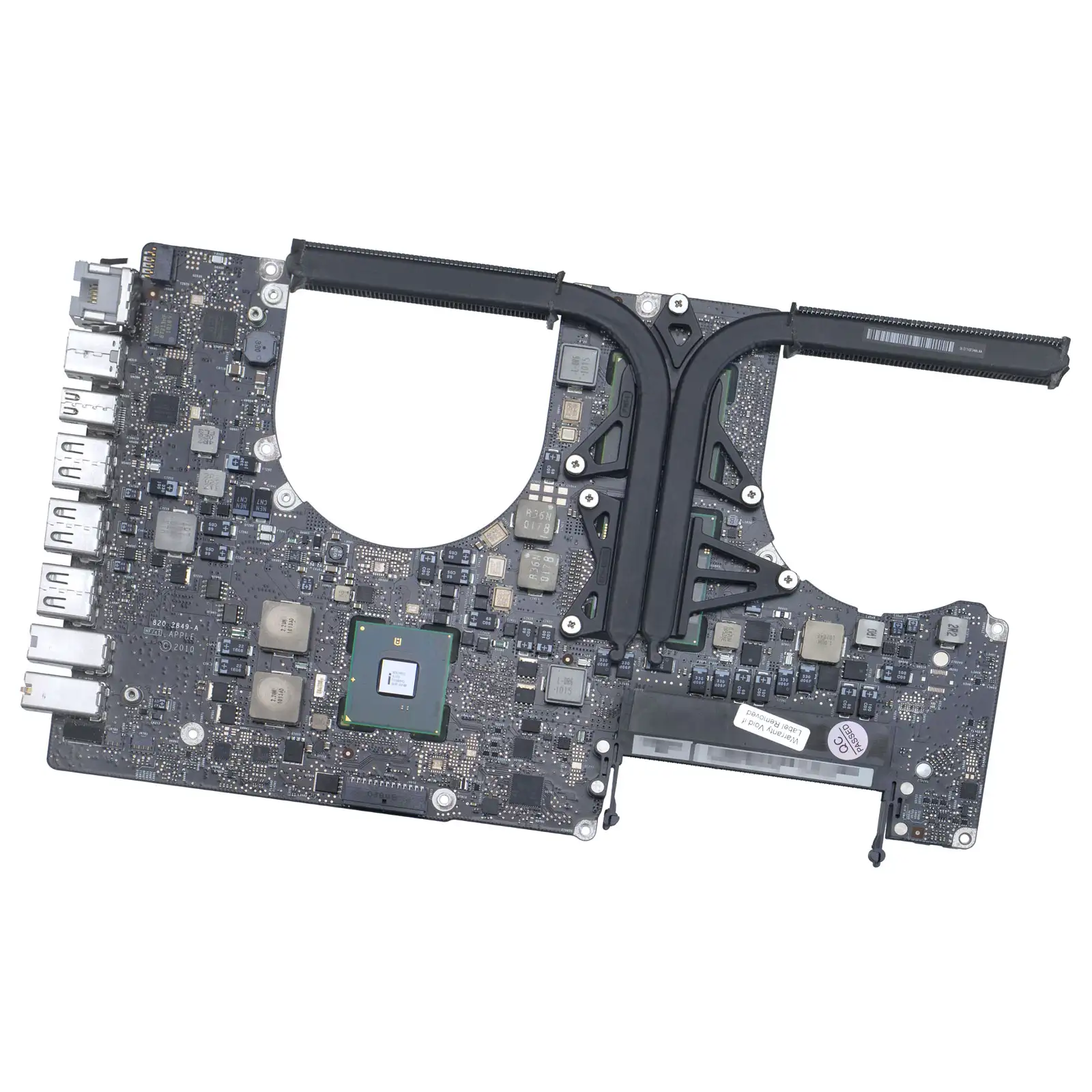

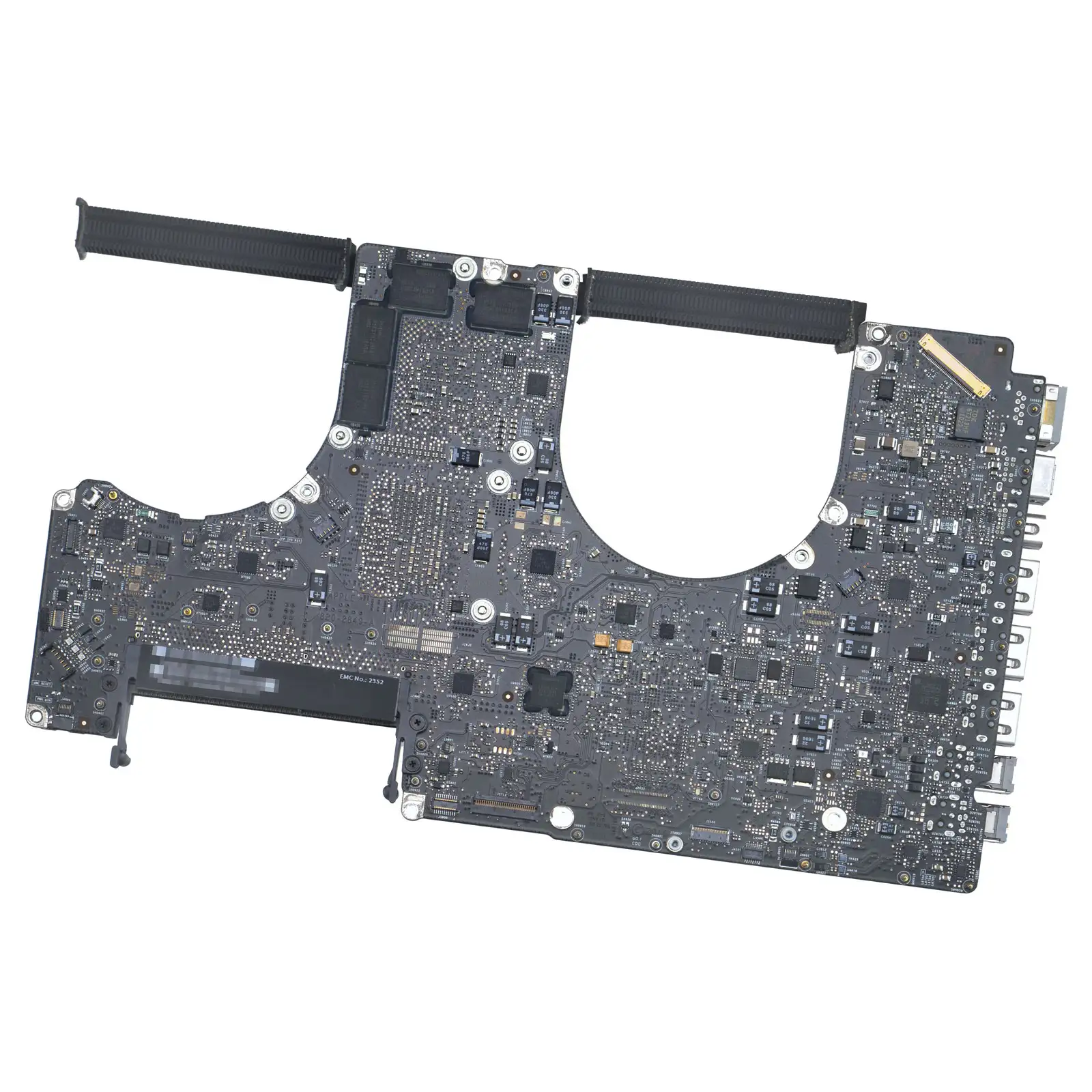

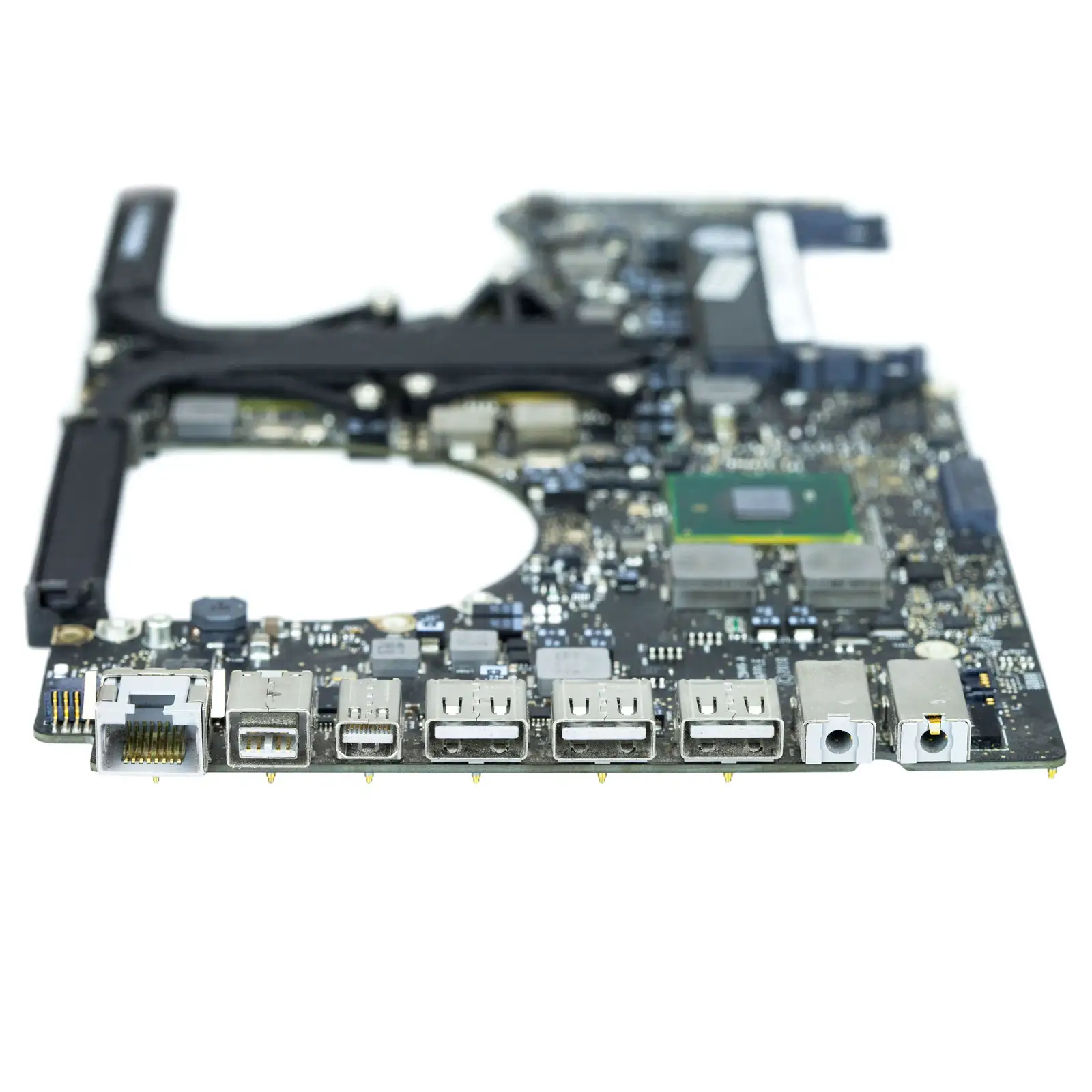

  • Logic board with integrated 2.8GHz Core i7 (i7-640M) processor, the most powerful upgrade option available for the Mid 2010 release.
  • This board has two GPUs onboard: the more powerful NVIDIA GeForce GT 330M with 512MB of GDDR3 VRAM, and the more energy efficient Intel HD Graphics.

What's Included

  • 1 - Logic board
  • 1 - Heatsink

Identifying Numbers

  • APN : 661-5802

    Apple Part Numbers

    • Created for internal Apple use.
    • Never visible on the item.

  • PPN : 820-2849-A

    Printed Part Numbers

    • Created by manufacturers during production.
    • Always visible on the item.

Tech Specs

  • Onboard CPU: 2.8GHz Intel Core i7-640M
  • Graphics Card: NVIDIA GeForce GT 330M (512MB)
  • Secondary Graphics: Intel HD Graphics (256MB)
  • USB Ports: 3 - 2.0
  • FireWire Ports: 1 - 800
  • Display Ports: 1 - Mini DisplayPort
  • Audio Ports: 1 - 3.5mm analog/optical combo jack
  • Expansion Slots: 1 - ExpressCard/34

Warranty

60 Day - This product has been tested working, but Apple has acknowledged that this part may suffer from a defect which limits its lifespan. Due to the potential for this known defect to arise in the future, we’re warrantying this product for a 60 day period.

Compatibility

Find your device to verify compatibility.

Not Compatible

Compatible

{{device.device_name}}

{{device.device_name}}
Model Number: {{formatString(device.model_number)}}
Order Number: {{formatString(device.order_number)}}
Model Identifier: {{formatString(device.model_identifier)}}
EMC Number: {{formatString(device.emc_number)}}
Notes: {{device.notes}}

{{ error }}

No devices found

MacBook Pro 17" A1297
  • MacBookPro6,1 Unibody Mid 2010: MC024LL/A (2.53 GHz Core i5)
  • MacBookPro6,1 Unibody Mid 2010: BTO (2.66 GHz Core i7)
  • MacBookPro6,1 Unibody Mid 2010: BTO (2.8 GHz Core i7)
