Camera Connector

iSight Camera Sensor Connector (12 Pin)

iSight Camera Sensor Connector (12 Pin)

iSight Camera Sensor Connector (12 Pin)

iSight Camera Sensor Connector (12 Pin)

iSight Camera Sensor Connector (12 Pin)

iSight Camera Sensor Connector (12 Pin)

iSight Camera Sensor Connector (12 Pin)

iSight Camera Sensor Connector (12 Pin)

New Condition

$12.45

In stock

Volume Discounts
Quantity	Price each	Save
2–4	$11.45	8%
5–7	$10.46	16%
8+	$9.46	24%

SKU: A6E8-N00 Categories: Parts, MacBook Air, MacBook Air 11" (A1465), MacBook Air 11" A1465 - Mid 2013, 4143511, MacBook Air 11" A1465 - Early 2014, 4175817, MacBook Air 11" A1465 - Early 2015, 4207239, MacBook Air 13" (A1466), MacBook Air 13" A1466 - Mid 2013, 4143598, MacBook Air 13" A1466 - Early 2014, 4175894, MacBook Air 13" A1466 - Early 2015, 4207260, MacBook Air 13" A1466 - Mid 2017, 4289113, MacBook Pro, MacBook Pro Retina 13" (A1502), MacBook Pro Retina 13" A1502 - Late 2013, 4156931, MacBook Pro Retina 13" A1502 - Mid 2014, 4184938, MacBook Pro Retina 13" A1502 - Early 2015, 4207237, MacBook Pro Retina 15" (A1398), MacBook Pro Retina 15" A1398 - Late 2013, 4156981, MacBook Pro Retina 15" A1398 - Mid 2014, 4184959, MacBook Pro Retina 15" A1398 - Mid 2015, 4214389 Tags: connection, FaceTime, iSight, Webcam, WTB

Description

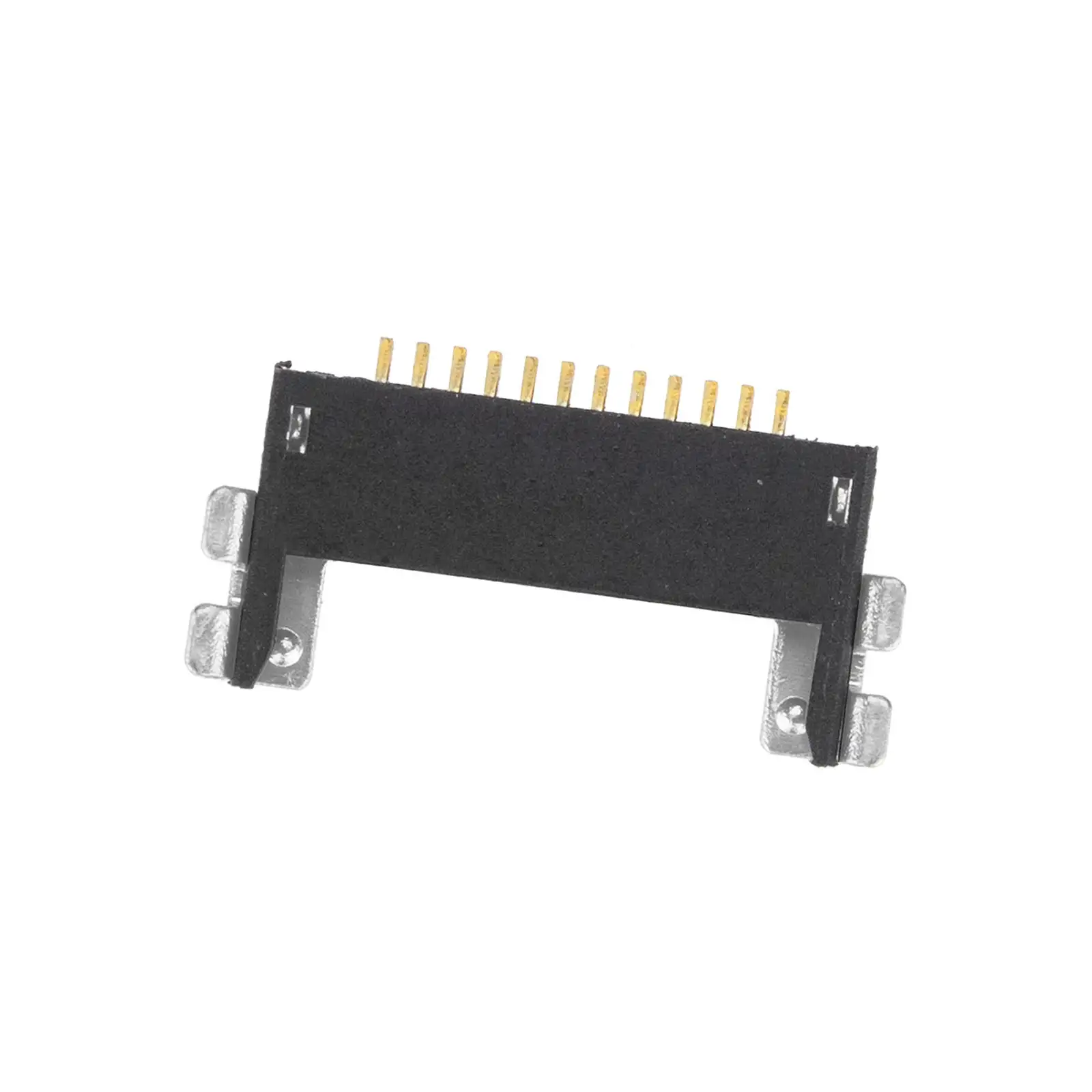

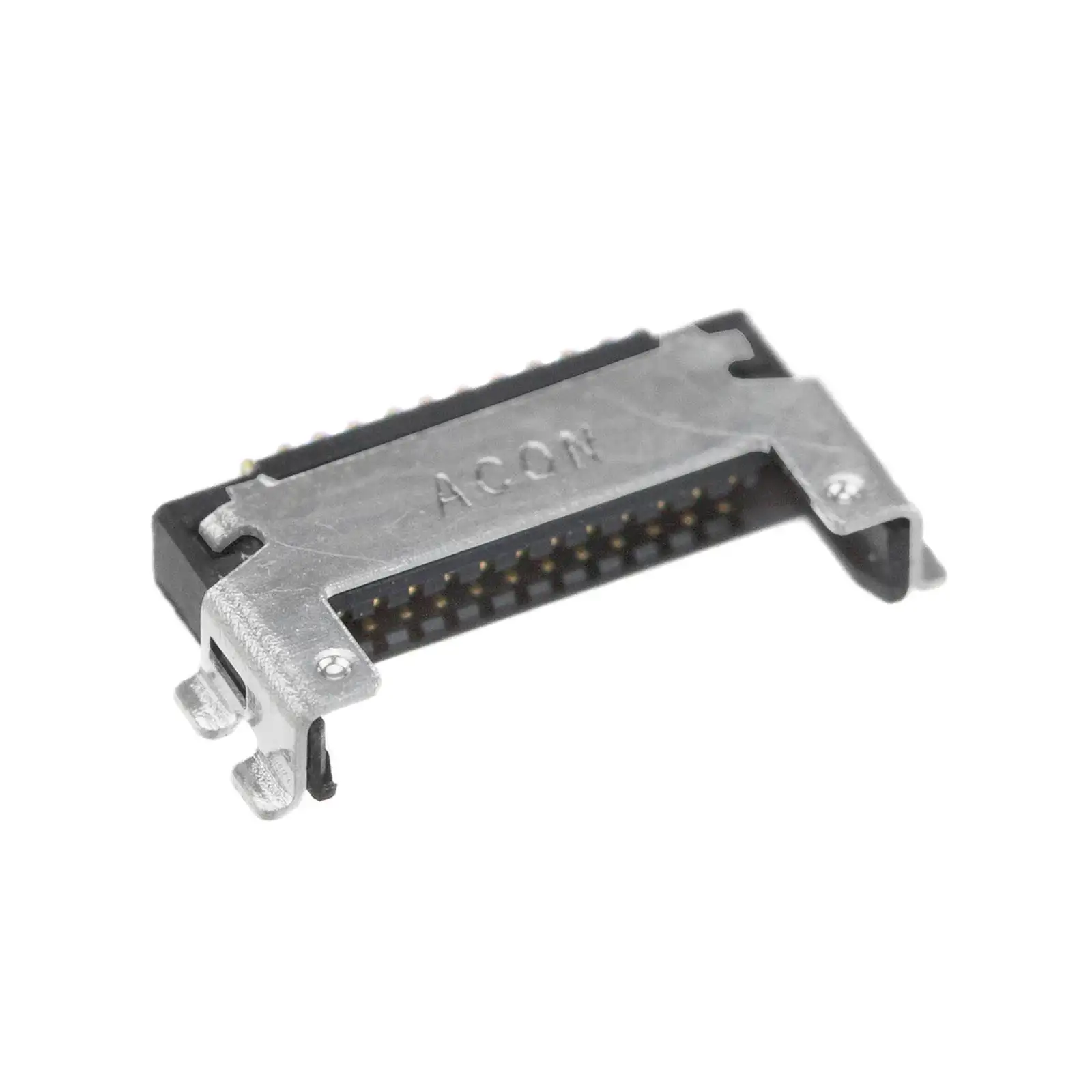

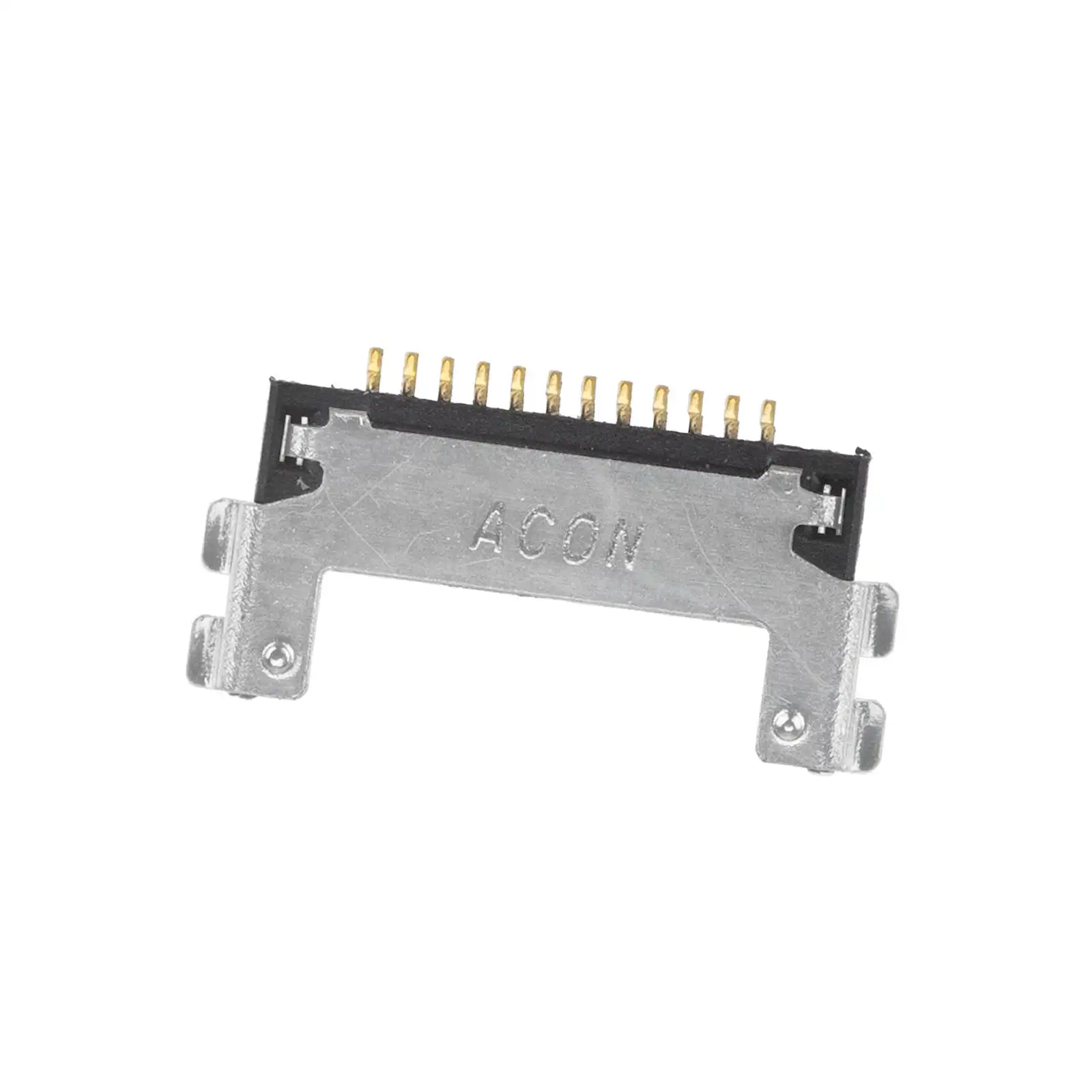

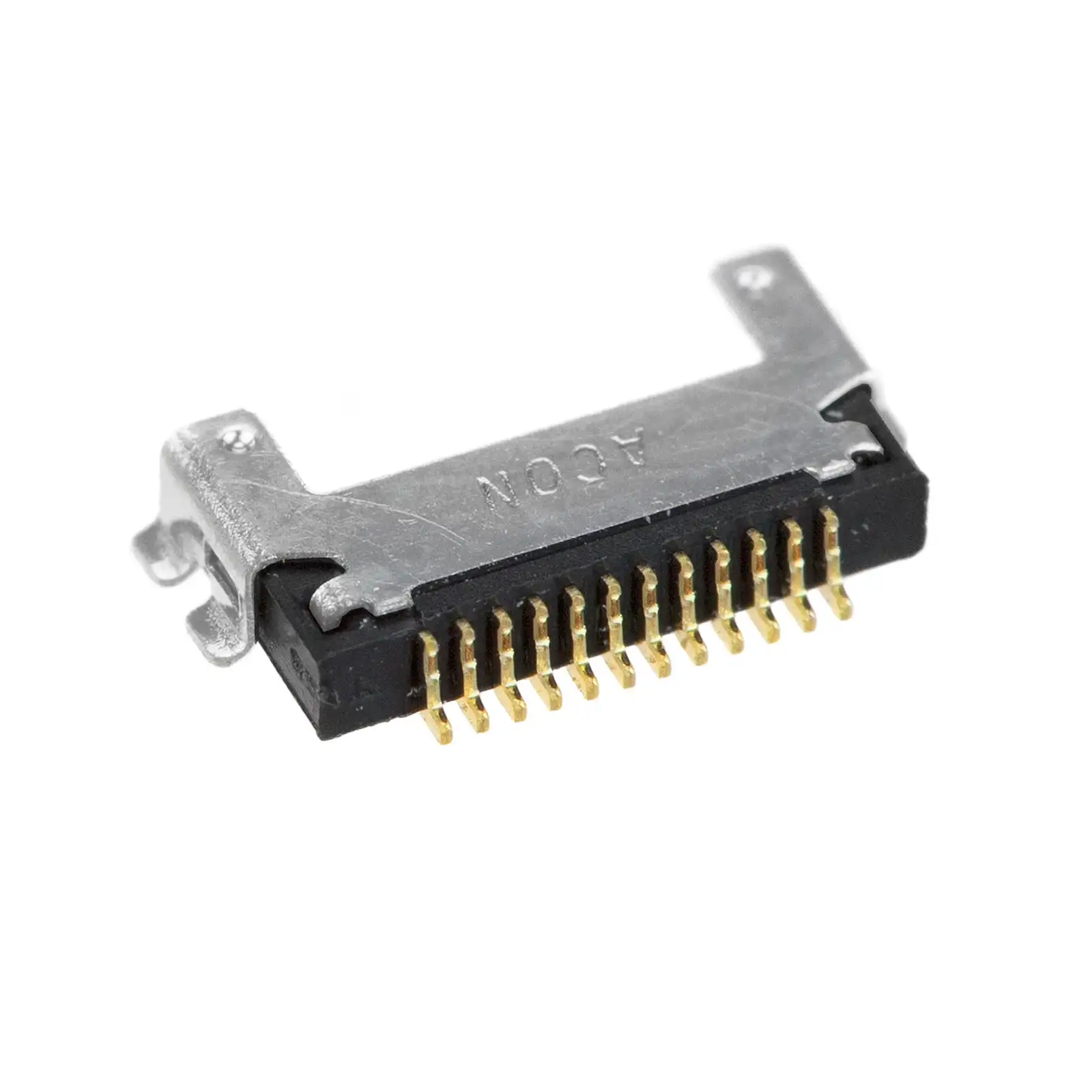

This 12-pin connector accepts the FaceTime HD webcam cable from the display assembly.

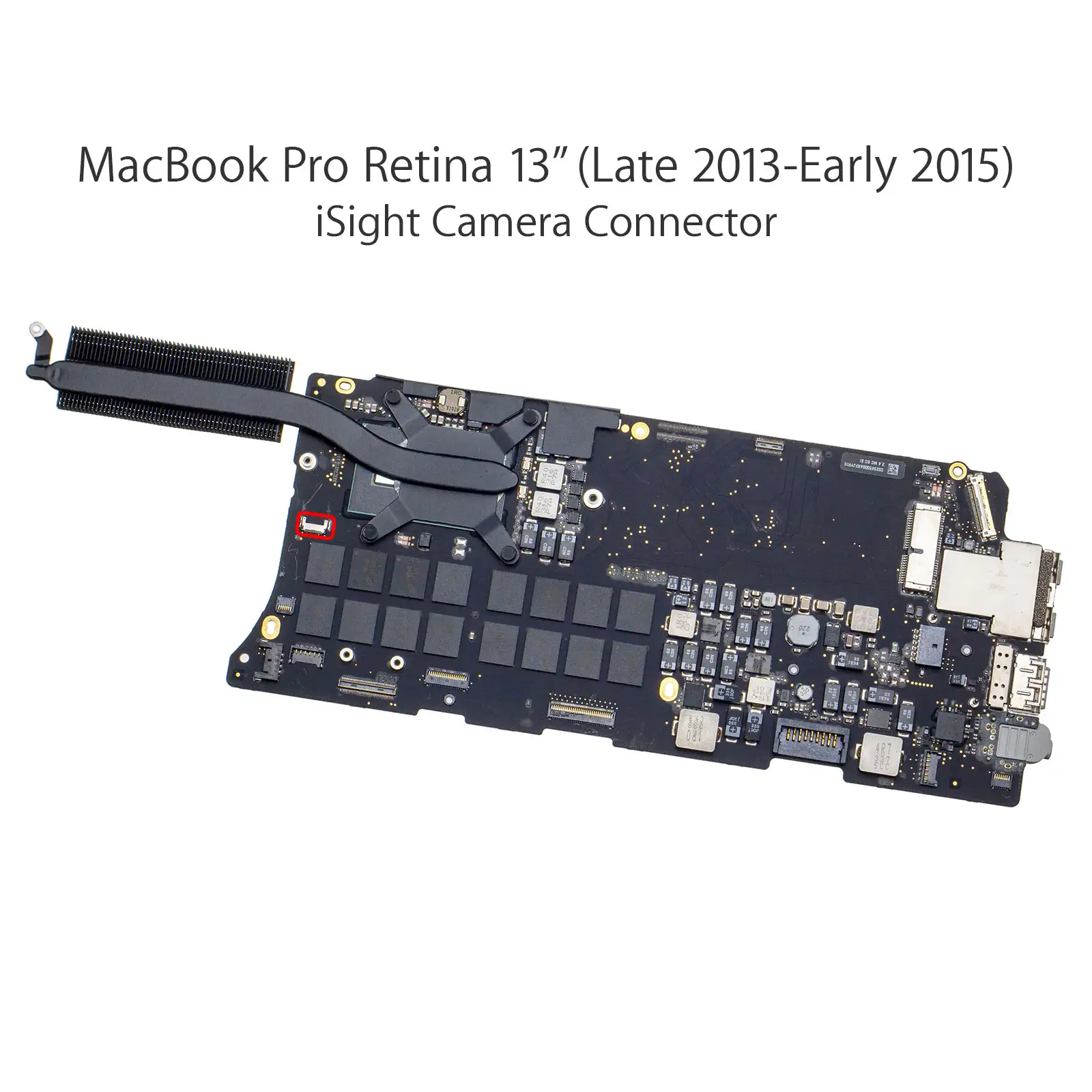

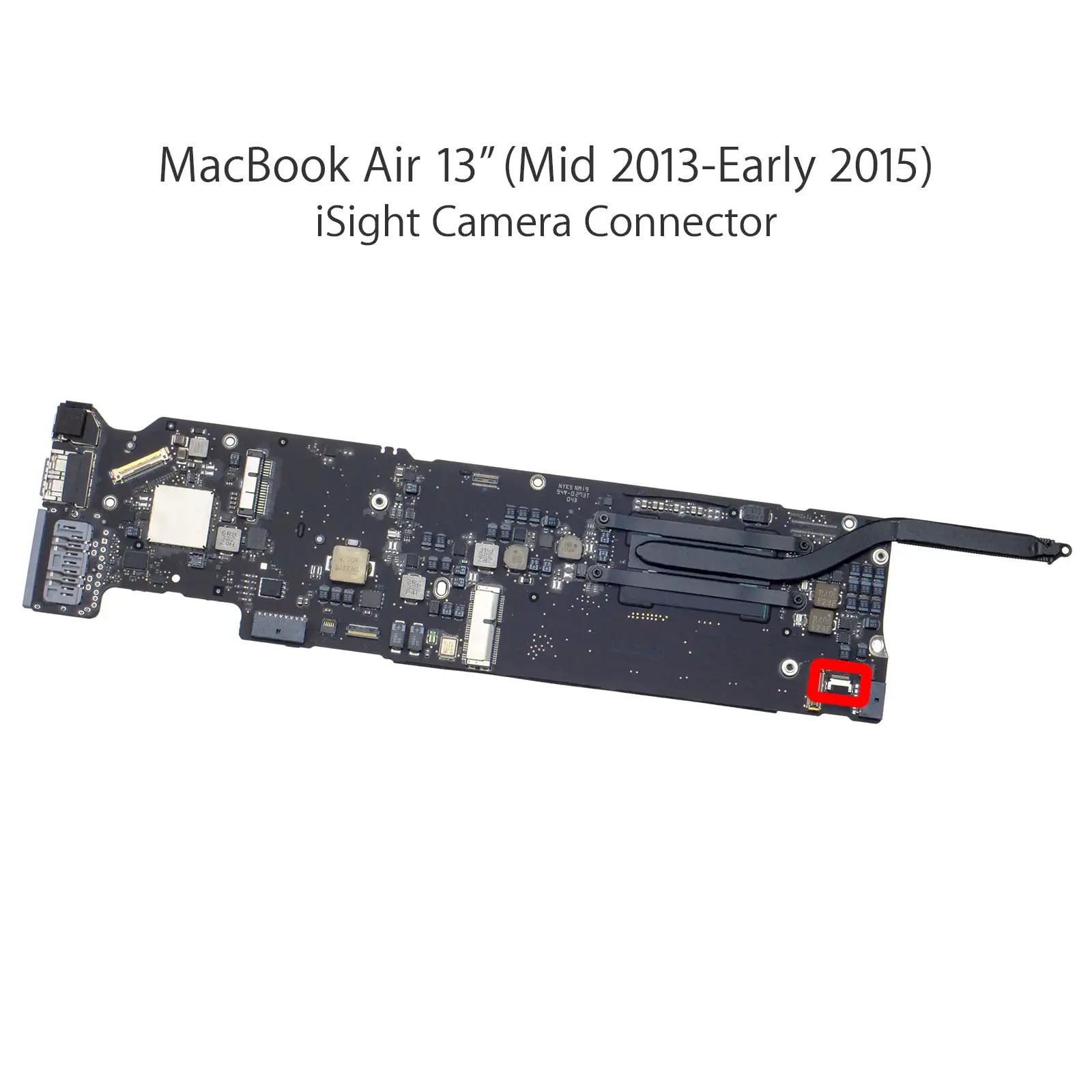

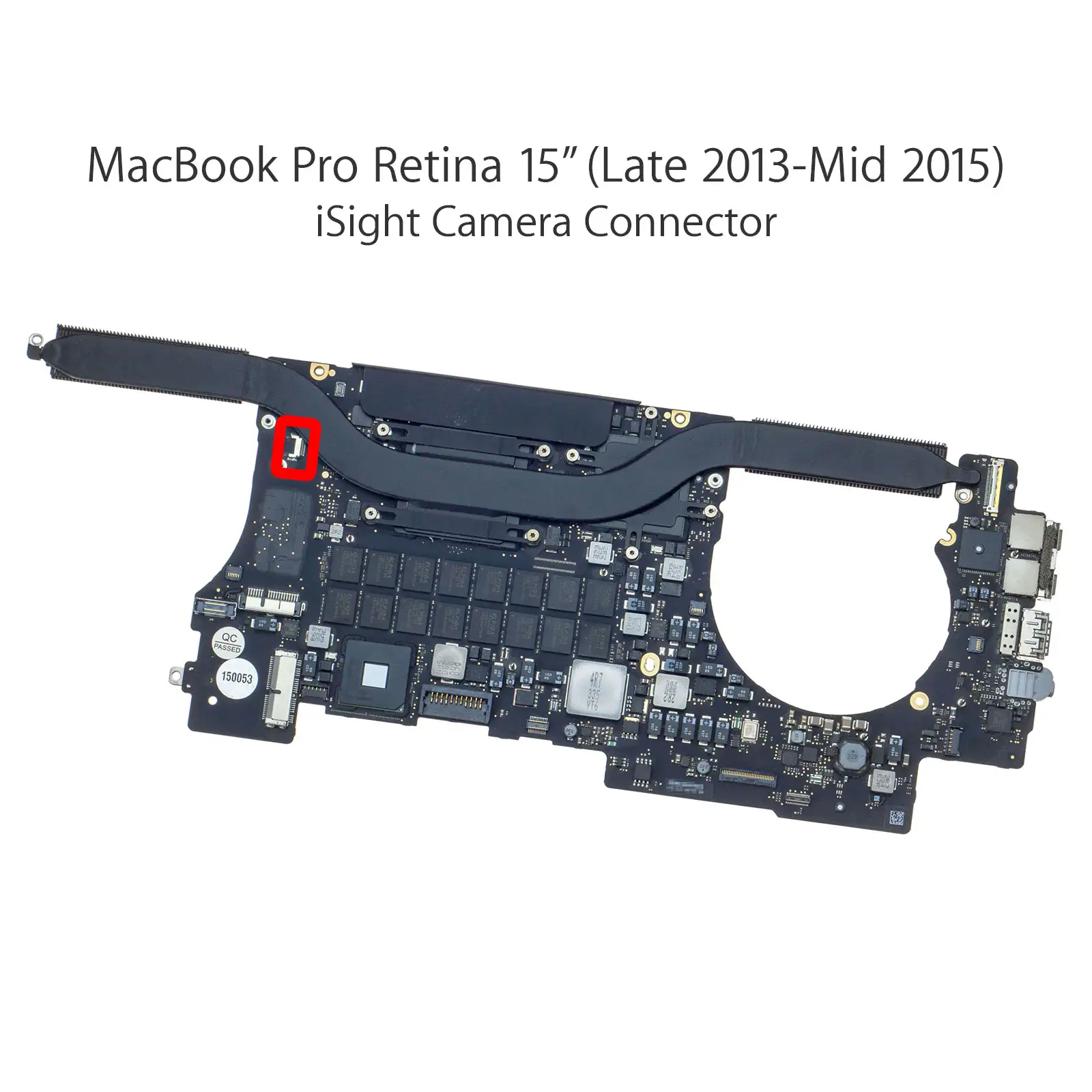

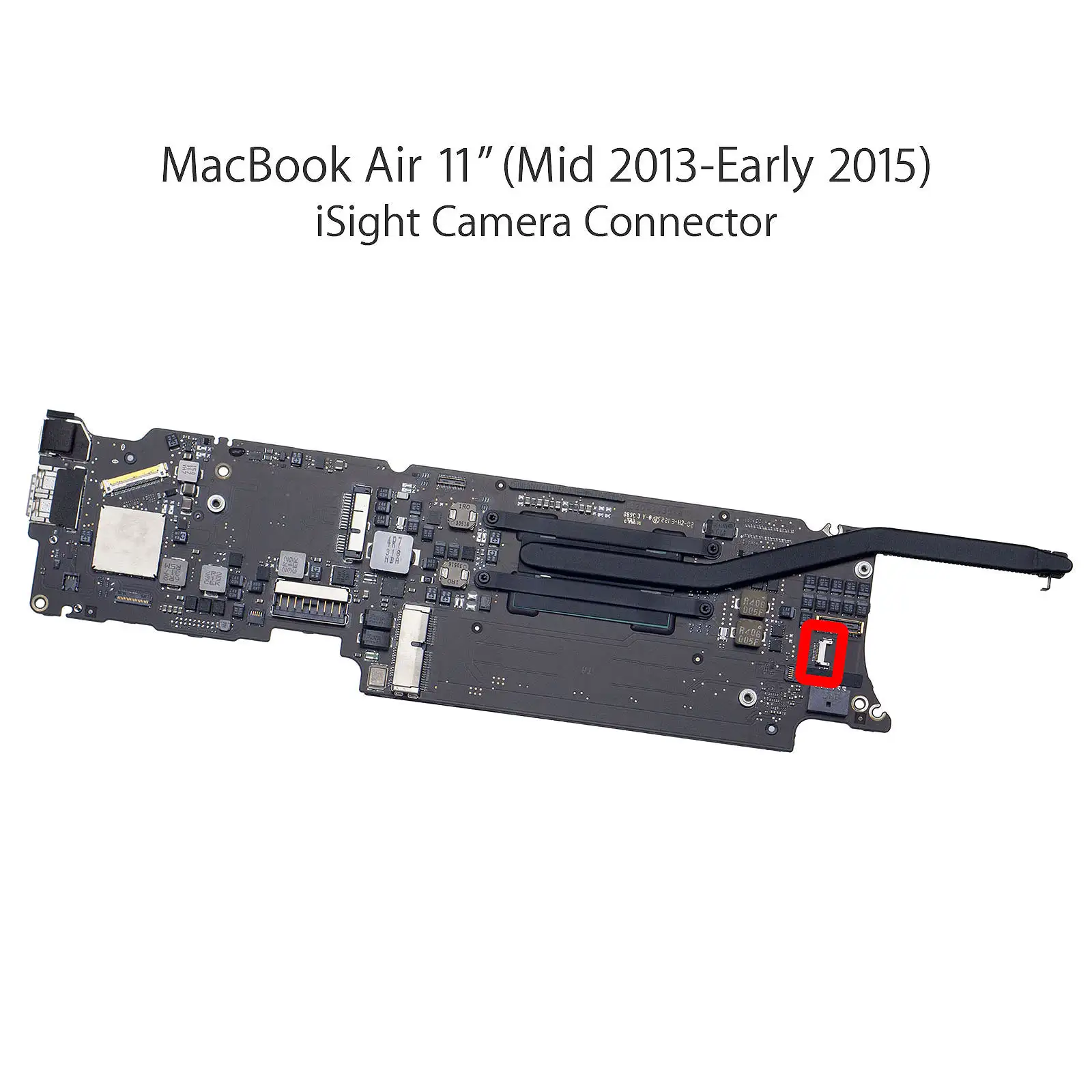

The connector can be found on logic boards and I/O boards across a range of Apple devices beginning with Mid 2013 releases.
Identified as APN 518S0892 and J4002 in board schematic diagrams.
Boy, these suckers are sure hard to find!

What's Included

1 - Camera connector (12-pin)

Identifying Numbers

APN : 518S0892, J4002
Apple Part Numbers
- Created for internal Apple use.
- Never visible on the item.
PPN : CCR20-AK7100-1
Printed Part Numbers
- Created by manufacturers during production.
- Always visible on the item.

Tech Specs

Brand: ACON
Connector Material: Copper Alloy
Connector Type: Receptacle
Gender: Female
Mounting Type: Surface Mount, Right Angle
Number of Positions: 12 pin
Style: Board to Cable/Wire

Warranty

No Warranty - This product is designed to be consumed with use.

Compatibility

Find your device to verify compatibility.

Not Compatible

Compatible

{{device.device_name}}

{{device.device_name}}

Model Number: {{formatString(device.model_number)}}

Order Number: {{formatString(device.order_number)}}

Model Identifier: {{formatString(device.model_identifier)}}

EMC Number: {{formatString(device.emc_number)}}

Notes: {{device.notes}}

{{ error }}

No devices found

MacBook Air 11" A1465

MacBookAir6,1 Mid 2013: MD711LL/A (1.3 GHz Core i5)
MacBookAir6,1 Mid 2013: MD712LL/A (1.3 GHz Core i5)
MacBookAir6,1 Mid 2013: BTO (1.7 GHz Core i7)
MacBookAir6,1 Early 2014: MD711LL/B (1.4 GHz Core i5)
MacBookAir6,1 Early 2014: MD712LL/B (1.4 GHz Core i5)
MacBookAir6,1 Early 2014: MF067LL/A (1.7 GHz Core i7)
MacBookAir7,1 Early 2015: MJVM2LL/A (1.6 GHz Core i5)
MacBookAir7,1 Early 2015: MJVP2LL/A (1.6 GHz Core i5)
MacBookAir7,1 Early 2015: BTO (2.2 GHz Core i7)

MacBook Air 13" A1466

MacBookAir6,2 Mid 2013: MD760LL/A (1.3 GHz Core i5)
MacBookAir6,2 Mid 2013: MD761LL/A (1.3 GHz Core i5)
MacBookAir6,2 Mid 2013: BTO (1.7 GHz Core i7)
MacBookAir6,2 Early 2014: MD760LL/B (1.4 GHz Core i5)
MacBookAir6,2 Early 2014: MD761LL/B (1.4 GHz Core i5)
MacBookAir6,2 Early 2014: MF068LL/A (1.7 GHz Core i7)
MacBookAir7,2 Early 2015: MJVE2LL/A (1.6 GHz Core i5)
MacBookAir7,2 Early 2015: MJVG2LL/A (1.6 GHz Core i5)
MacBookAir7,2 Early 2015: MMGF2LL/A (1.6 GHz Core i5)
MacBookAir7,2 Early 2015: MMGG2LL/A (1.6 GHz Core i5)
MacBookAir7,2 Early 2015: BTO (2.2 GHz Core i7)
MacBookAir7,2 Mid 2017: MQD32LL/A (1.8 GHz Core i5)
MacBookAir7,2 Mid 2017: MQD42LL/A (1.8 GHz Core i5)
MacBookAir7,2 Mid 2017: Z0UU1LL/A (2.2 GHz Core i7)
MacBookAir7,2 Mid 2017: MQD52LL/A (2.2 GHz Core i7)

MacBook Pro 13" A1502

MacBookPro11,1 Retina Late 2013: ME864LL/A (2.4 GHz Core i5)
MacBookPro11,1 Retina Late 2013: ME865LL/A (2.4 GHz Core i5)
MacBookPro11,1 Retina Late 2013: ME866LL/A (2.6 GHz Core i5)
MacBookPro11,1 Retina Late 2013: ME867LL/A (2.8 GHz Core i7)
MacBookPro11,1 Retina Mid 2014: MGX72LL/A (2.6 GHz Core i5)
MacBookPro11,1 Retina Mid 2014: MGX82LL/A (2.6 GHz Core i5)
MacBookPro11,1 Retina Mid 2014: MGX92LL/A (2.8 GHz Core i5)
MacBookPro11,1 Retina Mid 2014: MGXD2LL/A (3.0 GHz Core i7)
MacBookPro12,1 Retina Early 2015: MF839LL/A (2.7 GHz Core i5)
MacBookPro12,1 Retina Early 2015: MF840LL/A (2.7 GHz Core i5)
MacBookPro12,1 Retina Early 2015: MF841LL/A (2.9 GHz Core i5)
MacBookPro12,1 Retina Early 2015: MF843LL/A (3.1 GHz Core i7)

MacBook Pro 15" A1398

MacBookPro11,2 Retina Late 2013: ME293LL/A (2.0 GHz Core i7)
MacBookPro11,2 Retina Late 2013: BTO (2.3 GHz Core i7)
MacBookPro11,2 Retina Late 2013: BTO (2.6 GHz Core i7)
MacBookPro11,3 Retina Late 2013: ME294LL/A (2.3 GHz Core i7)
MacBookPro11,3 Retina Late 2013: ME874LL/A (2.6 GHz Core i7)
MacBookPro11,2 Retina Mid 2014: MGXA2LL/A (2.2 GHz Core i7)
MacBookPro11,2 Retina Mid 2014: BTO (2.5 GHz Core i7)
MacBookPro11,2 Retina Mid 2014: BTO (2.8 GHz Core i7)
MacBookPro11,3 Retina Mid 2014: MGXC2LL/A (2.5 GHz Core i7)
MacBookPro11,3 Retina Mid 2014: MGXG2LL/A (2.8 GHz Core i7)
MacBookPro11,4 Retina Mid 2015: MJLQ2LL/A (2.2 GHz Core i7)
MacBookPro11,4 Retina Mid 2015: BTO (2.5 GHz Core i7)
MacBookPro11,4 Retina Mid 2015: BTO (2.8 GHz Core i7)
MacBookPro11,5 Retina Mid 2015: MJLT2LL/A (2.5 GHz Core i7)
MacBookPro11,5 Retina Mid 2015: MJLU2LL/A (2.8 GHz Core i7)
