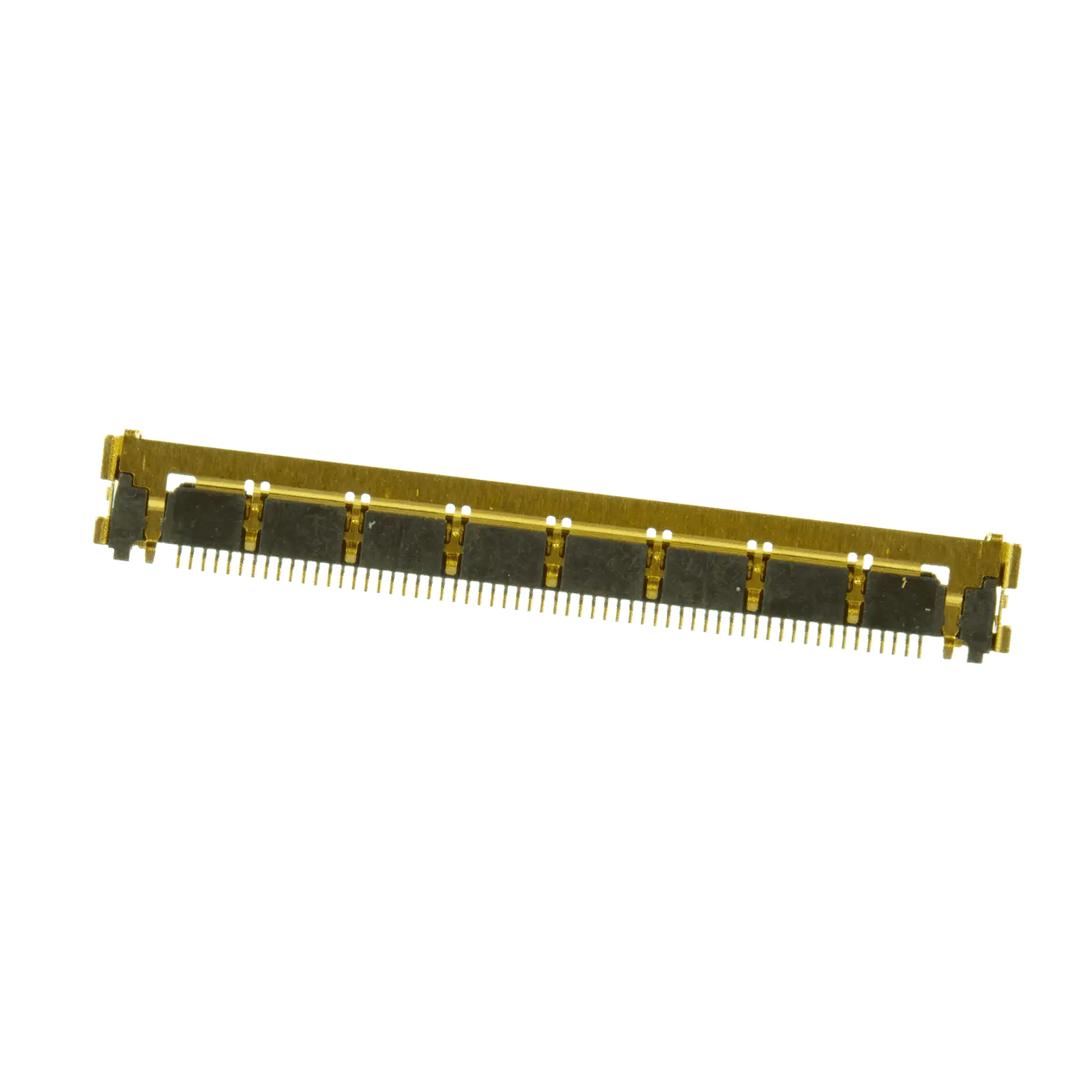

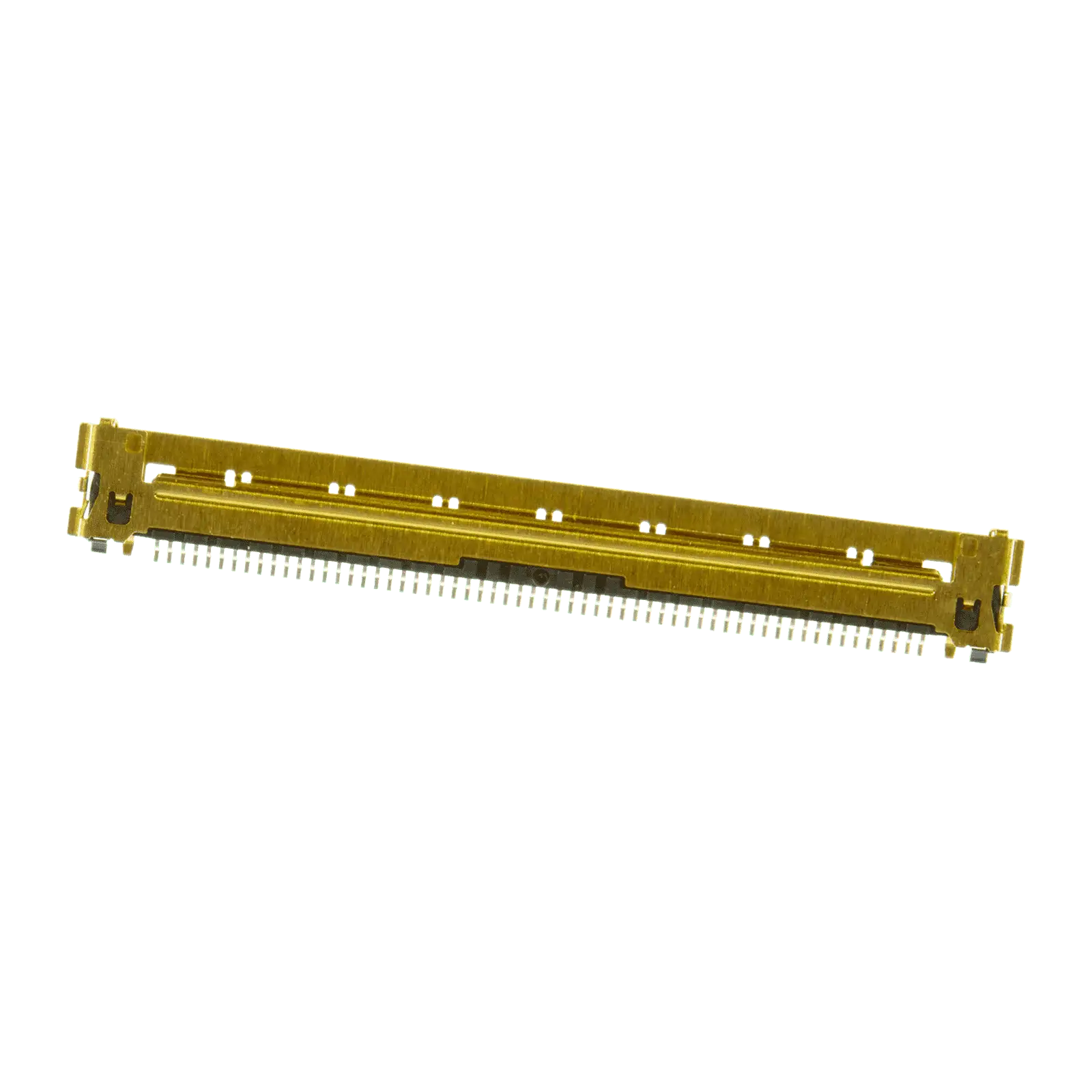

LCD Display Internal DP Connector

New Condition

ipex

$7.55

Out of stock

Notify me when item is back in stock

SKU: 6B7C-N00 Categories: 4192856, 4214383, 4229067, 4289175, 4289185, iMac, iMac 21.5" (A1418), iMac 21.5" A1418 - Mid 2017, iMac 27" (A1419), iMac 27" A1419 - Late 2014, iMac 27" A1419 - Mid 2015, iMac 27" A1419 - Mid 2017, iMac-27" A1419 - Late 2015, Parts Tags: 20525-060E-02, eDP, I-PEX, ipex, LVDS, Motherboard, Screen

Description

Replacement connector on the logic board for connection of the LCD panel.
This is referenced as the Internal DP connector and identified by J4400 in logic board schematic diagrams.
Despite the fact that iMac LCDs stopped using the LVDS protocol years earlier, this is still commonly referred to as an LVDS connector.
Installation requires the equipment and skills for microsoldering repair.

What's Included

1 - Internal DP Connector

Identifying Numbers

APN : 518S0886
Apple Part Numbers
- Created for internal Apple use.
- Never visible on the item.
PPN : 20525-160E-01
Printed Part Numbers
- Created by manufacturers during production.
- Always visible on the item.

Tech Specs

Brand: I-PEX
Connector Material: Copper Alloy
Connector Type: Receptacle
Gender: Female
Mounting Type: Surface Mount, Right Angle
Number of Positions: 60 pin
Pitch: 0.4 mm
Style: Board to Cable/Wire

Warranty

No Warranty - This product is designed to be consumed with use.

Compatibility

Find your device to verify compatibility.

Not Compatible

Compatible

{{device.apple_device}}

{{device.apple_device}}

Model Number: {{formatString(device.model_number)}}

Order Number: {{formatString(device.order_number)}}

Model Identifier: {{formatString(device.model_identifier)}}

EMC Number: {{formatString(device.emc_number)}}

Notes: {{device.notes}}

No devices found

iMac 21.5" A1418

iMac18,2 Retina 4K Mid 2017: MNDY2LL/A (3.0 GHz Core i5)
iMac18,2 Retina 4K Mid 2017: MNE02LL/A (3.4 GHz Core i5)
iMac18,2 Retina 4K Mid 2017: MNE02LL/A (3.6 GHz Core i7)

iMac 27" A1419

iMac15,1 Retina 5K Late 2014: MF886LL/A (3.5 GHz Core i5)
iMac15,1 Retina 5K Late 2014: MF886LL/A (4.0 GHz Core i7)
iMac15,1 Retina 5K Mid 2015: MF885LL/A (3.3 GHz Core i5)
iMac17,1 Retina 5K Late 2015: MK462LL/A (3.2 GHz Core i5)
iMac17,1 Retina 5K Late 2015: MK482LL/A (3.3 GHz Core i5)
iMac17,1 Retina 5K Late 2015: MK482LL/A (4.0 GHz Core i7)
iMac18,3 Retina 5K Mid 2017: MNE92LL/A (3.4 GHz Core i5)
iMac18,3 Retina 5K Mid 2017: MNEA2LL/A (3.5 GHz Core i5)
iMac18,3 Retina 5K Mid 2017: MNED2LL/A (3.8 GHz Core i5)
iMac18,3 Retina 5K Mid 2017: MNED2LL/A (4.2 GHz Core i7)
