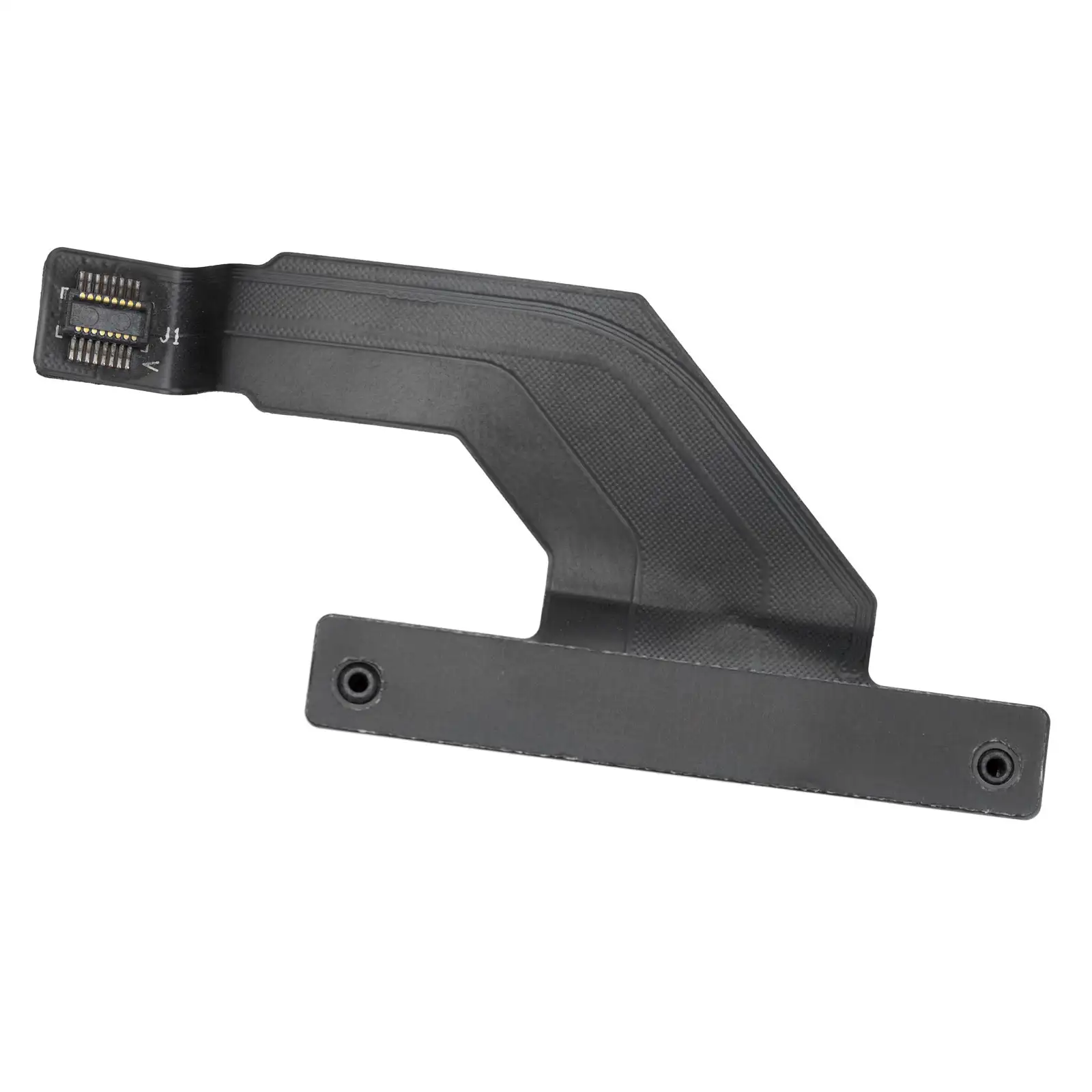

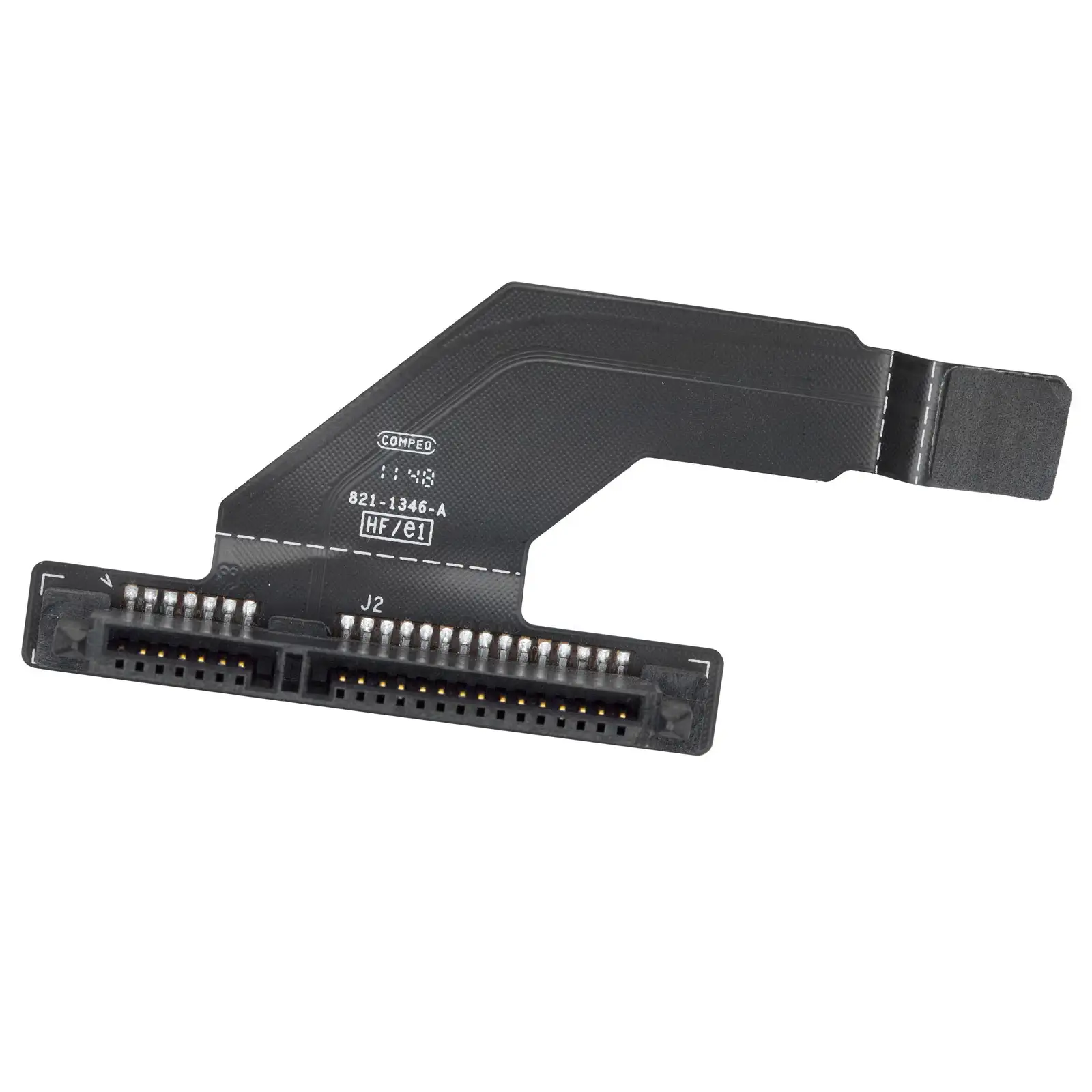

Hard Drive Flex Cable, Lower



Price range: $14.35 through $17.80

SKU: CB21-P00 Categories: , , , , , , , , Tag:

Description

  • This SATA cable is used to connect a hard drive or SSD in the lower drive bay.
  • The lower drive bay is the default position if the Mac mini was configured with only a single storage drive.
  • Some 2012 releases shipped with the hard drive in the upper bay instead of the lower bay. To find this information, open Applications->Utilities->System Information and click SATA/SATA Express on the left. Under "Bay Name" it will list either "Lower" or "Upper."

What's Included

  • 1 - Hard Drive Flex Cable, Lower

Identifying Numbers

  • APN : 076-1390, 076-1412

    Apple Part Numbers

    • Created for internal Apple use.
    • Never visible on the item.

  • PPN : 821-1346-A, 821-1500-A

    Printed Part Numbers

    • Created by manufacturers during production.
    • Always visible on the item.

Warranty

Compatibility

Find your device to verify compatibility.

Not Compatible

Compatible

{{device.device_name}}

{{device.device_name}}
Model Number: {{formatString(device.model_number)}}
Order Number: {{formatString(device.order_number)}}
Model Identifier: {{formatString(device.model_identifier)}}
EMC Number: {{formatString(device.emc_number)}}
Notes: {{device.notes}}

No devices found

Mac mini A1347
  • Macmini5,1 Unibody Mid 2011: MC815LL/A (2.3 GHz Core i5)
  • Macmini5,2 Unibody Mid 2011: MC816LL/A (2.5 GHz Core i5)
  • Macmini5,2 Unibody Mid 2011: BTO (2.7 GHz Core i7)
  • Macmini5,3 Unibody, Server Mid 2011: MC936LL/A (2.0 GHz Core i7)
  • Macmini6,1 Unibody Late 2012: MD387LL/A (2.5 GHz Core i5)
  • Macmini6,2 Unibody Late 2012: MD388LL/A (2.3 GHz Core i7)
  • Macmini6,2 Unibody Late 2012: BTO (2.6 GHz Core i7)
  • Macmini6,2 Unibody, Server Late 2012: MD389LL/A (2.3 GHz Core i7)
  • Macmini6,2 Unibody, Server Late 2012: BTO (2.6 GHz Core i7)
