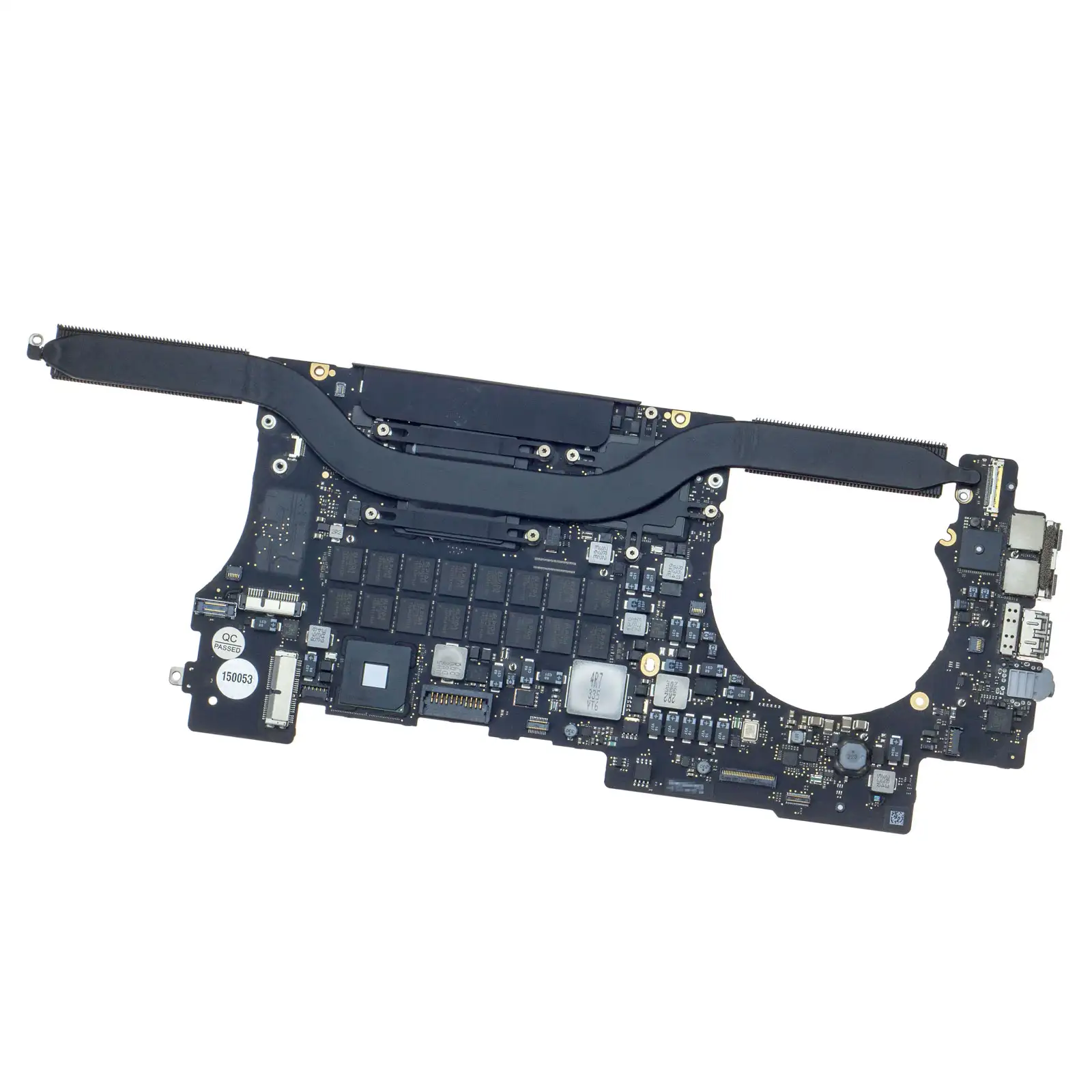

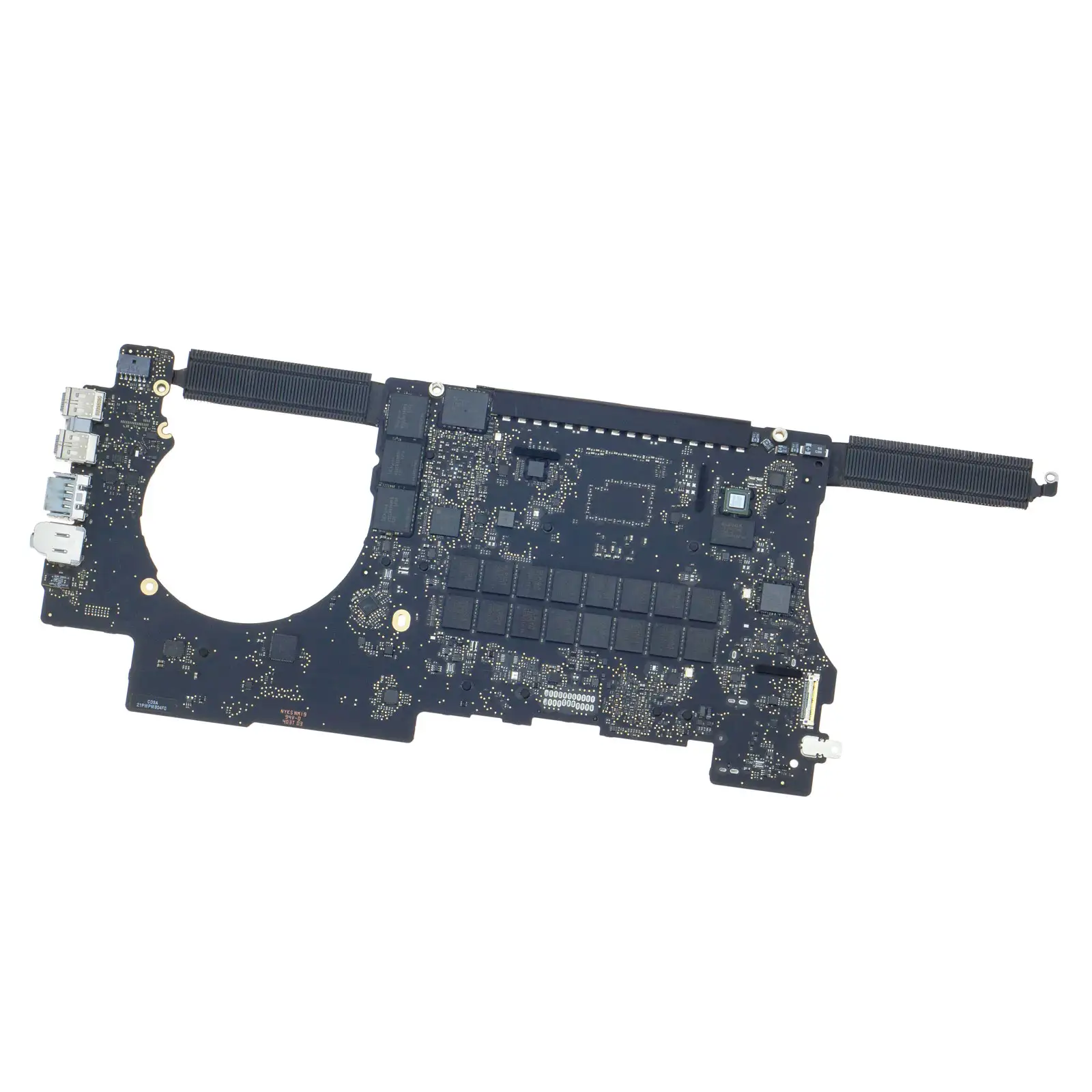

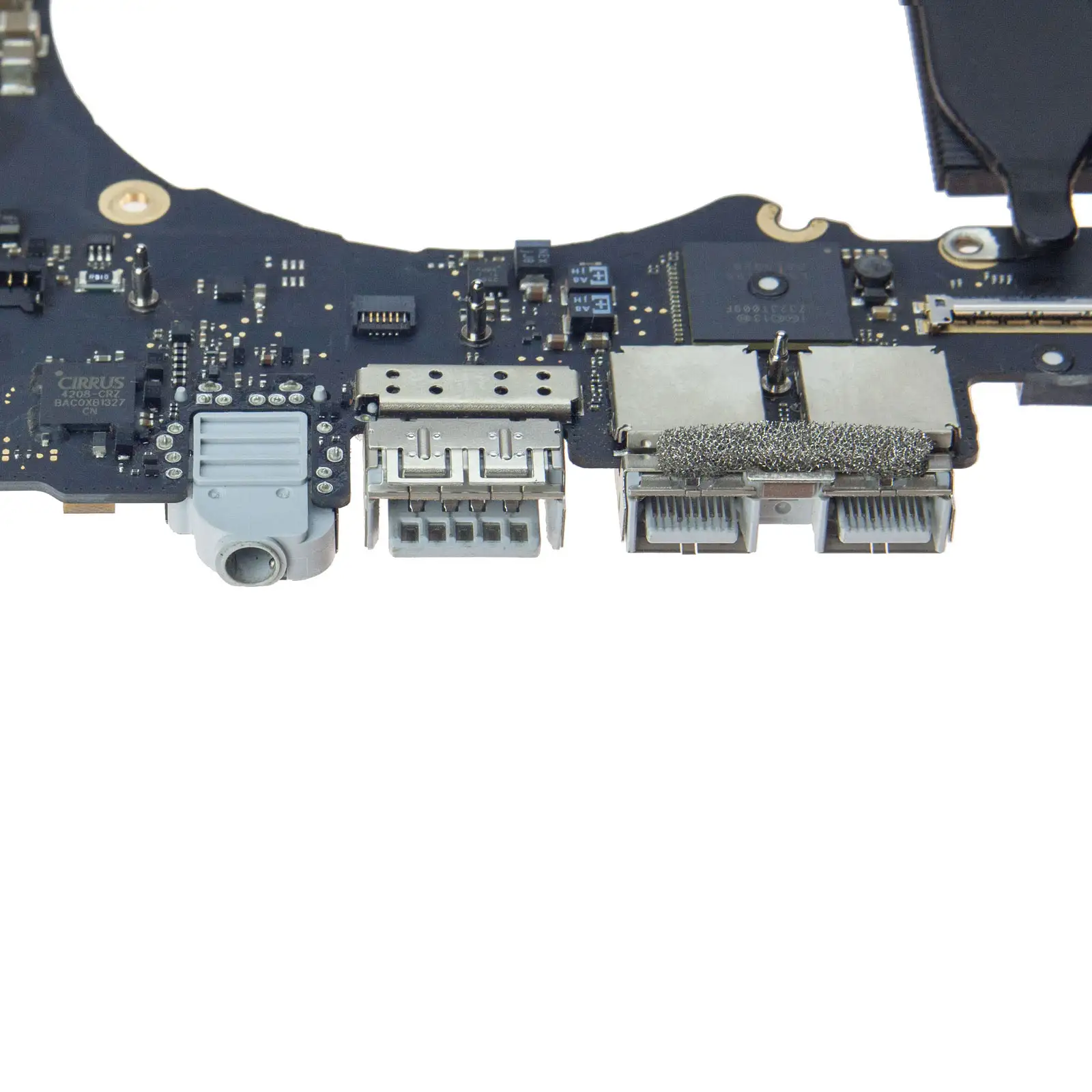

Apple MacBook Pro Retina 15" A1398 Late 2013 mid 2014 logic board
Apple MacBook Pro Retina 15" A1398 Late 2013 mid 2014 logic board
Apple MacBook Pro Retina 15" A1398 Late 2013 mid 2014 logic board
Used condition

Price range: $84.70 through $274.10

SKU: E5E9-P00 Categories: , , , , , , Tags: , , , ,

Description

  • Choose your preferred configuration of CPU, GPU, & RAM; all Late 2013 and Mid 2014 boards are cross-compatible.
  • The processor, graphics processor and memory are all onboard soldered components and cannot be upgraded without replacement of the entire board.
  • Boards of this era offered either a single, lower-power integrated (IG) GPU or a combo integrated & discrete graphics (DG) option that allows for switching the GPU in use depending on the task.

What's included

  • 1 - Logic board
  • 1 - Heatsink

Part numbers

  • APN : 661-8302, 661-8303, 661-8304, 661-8305, 661-8306, 661-8307, 661-8308, 661-8309, 661-00677, 661-00678, 661-00679, 661-00680

    Apple part numbers

    • Created for internal Apple use.
    • Never visible on the item.

  • PPN : 820-3662-03, 820-3662-A, 820-3787-06, 820-3787-A

    Printed part numbers

    • Created by manufacturers during production.
    • Always visible on the item.

Tech specs

  • Onboard CPU: Intel 2.0GHz, 2.2GHz, 2.3GHz, 2.5GHz, 2.6GHz, or 2.8GHz Core i7
  • Onboard GPU: Iris Pro 5200 (Integrated Graphics) or Iris Pro 5200 and NVIDIA GeForce GT 750M (Dual Graphics)
  • Onboard RAM: 8GB or 16GB DDR3L (1600MHz)

Warranty

Compatibility

Find your device to check compatibility.

Not compatible

Compatible

{{device.device_name}}

{{device.device_name}}
Model number: {{formatString(device.model_number)}}
Order number: {{formatString(device.order_number)}}
Model identifier: {{formatString(device.model_identifier)}}
EMC number: {{formatString(device.emc_number)}}
Notes: {{device.notes}}

{{ error }}

No devices found

MacBook Pro 15" A1398
  • MacBookPro11,2 Retina Late 2013: ME293LL/A (2.0 GHz Core i7)
  • MacBookPro11,2 Retina Late 2013: BTO (2.3 GHz Core i7)
  • MacBookPro11,2 Retina Late 2013: BTO (2.6 GHz Core i7)
  • MacBookPro11,3 Retina Late 2013: ME294LL/A (2.3 GHz Core i7)
  • MacBookPro11,3 Retina Late 2013: ME874LL/A (2.6 GHz Core i7)
  • MacBookPro11,2 Retina Mid 2014: MGXA2LL/A (2.2 GHz Core i7)
  • MacBookPro11,2 Retina Mid 2014: BTO (2.5 GHz Core i7)
  • MacBookPro11,2 Retina Mid 2014: BTO (2.8 GHz Core i7)
  • MacBookPro11,3 Retina Mid 2014: MGXC2LL/A (2.5 GHz Core i7)
  • MacBookPro11,3 Retina Mid 2014: MGXG2LL/A (2.8 GHz Core i7)
