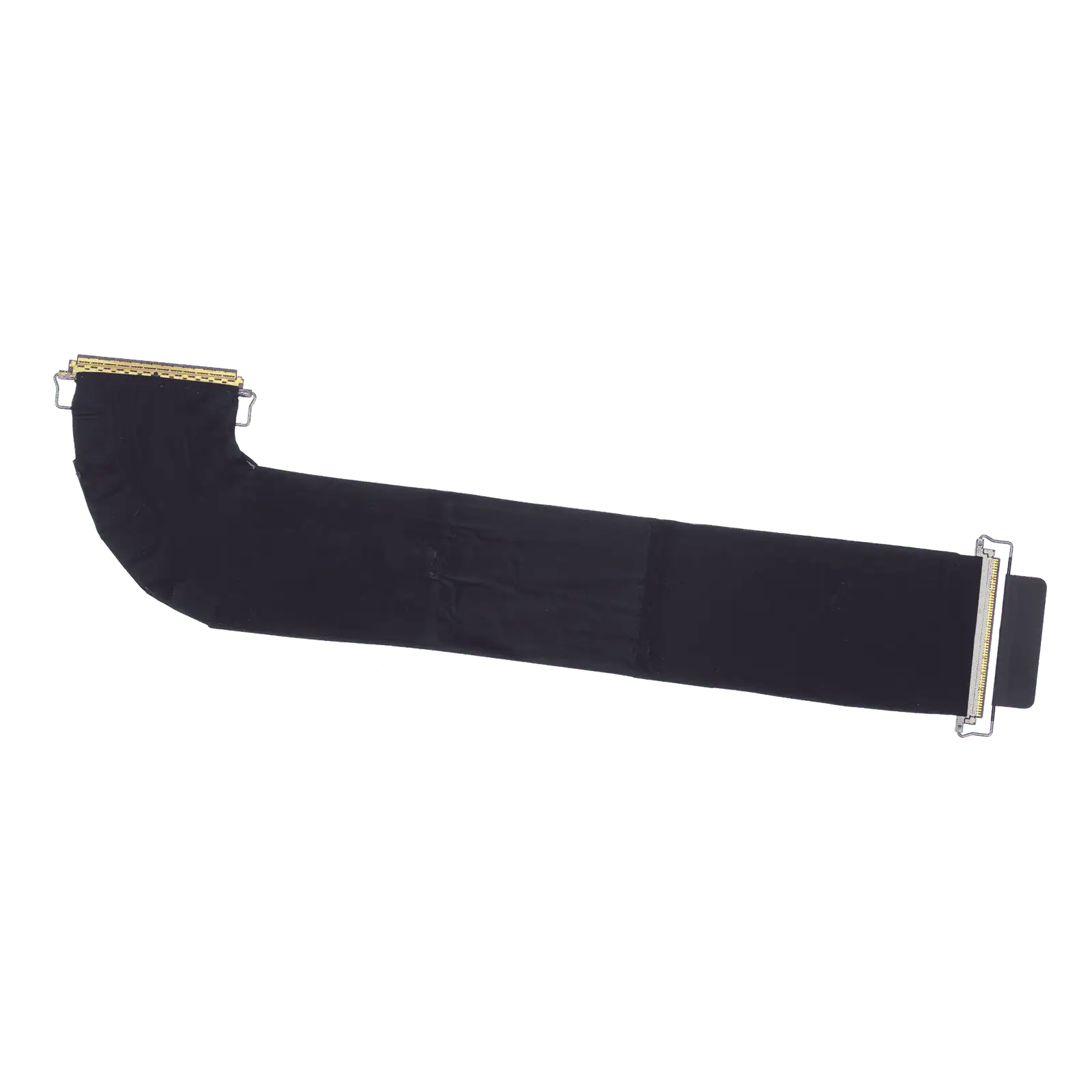

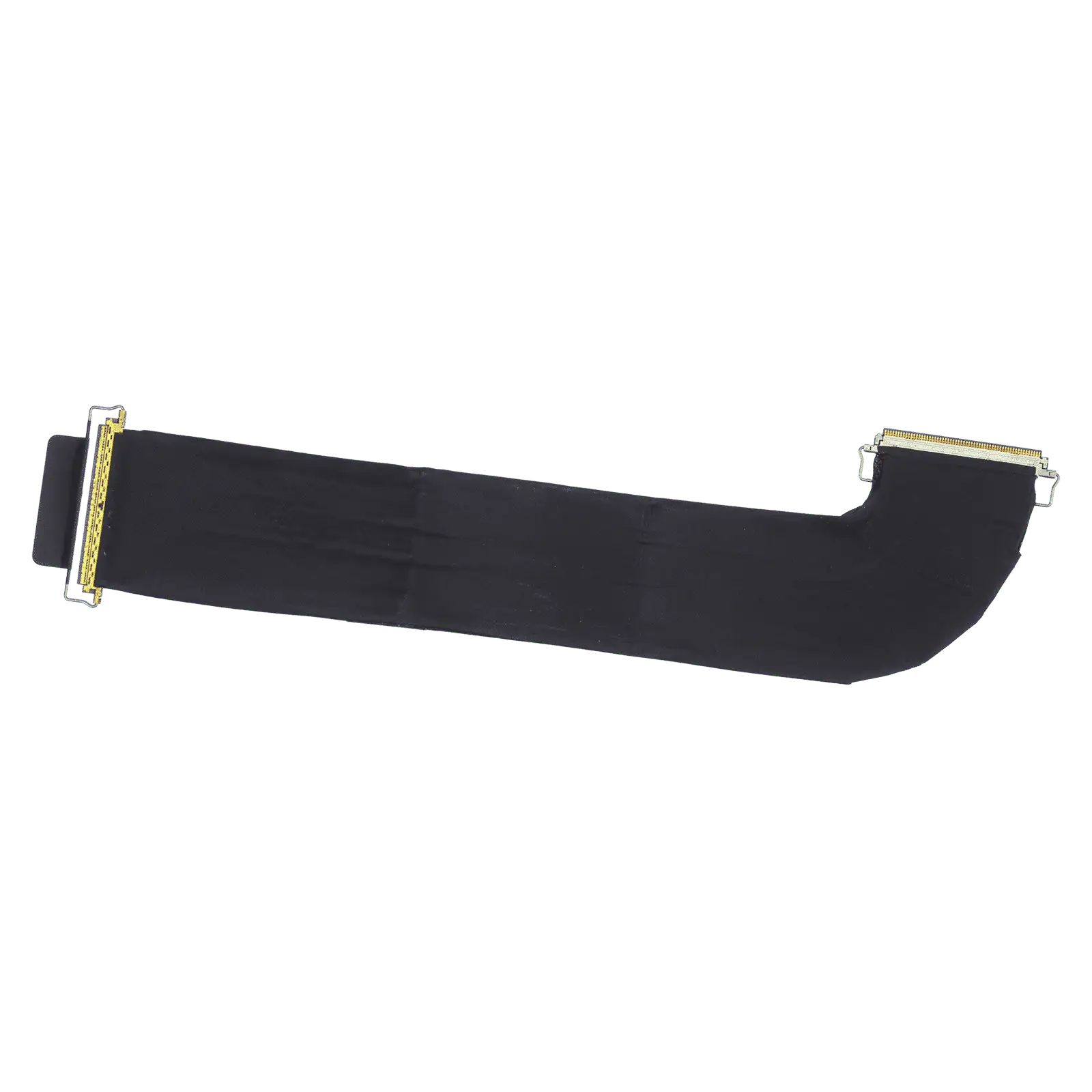

LCD Display eDP Cable, Retina 4K (60/60-Pin)



$19.10$19.20

Clear

Description

  • The eDP (Embedded DisplayPort) cable connects the logic board to the LCD panel and transfers power and video data.
  • There are two eDP cables for 21.5" iMac computers released Mid 2017 and this cable is only compatible with those that have Retina 4K displays.
  • This eDP cable for use with 4K Retina screens uses a cable with a 60-pin connection on the logic board and a 60-pin connection on the LCD panel.
  • The non-Retina eDP cable has a 30-pin connection on the logic board but only a 30-pin connection on the LCD panel.
  • This cable may be referred to as an LVDS cable due to widespread usage of the LVDS protocol in earlier Apple devices which was later replaced with Embedded DisplayPort.

What's Included

  • 1 - LCD Display eDP Cable

Identifying Numbers

  • APN : 923-01669

    Apple Part Numbers

    • Created for internal Apple use.
    • Never visible on the item.

Warranty

Compatibility

Find your device to verify compatibility.

Not Compatible

Compatible

{{device.apple_device}}

{{device.apple_device}}

Model Number: {{formatString(device.model_number)}}
Order Number: {{formatString(device.order_number)}}
Model Identifier: {{formatString(device.model_identifier)}}
EMC Number: {{formatString(device.emc_number)}}
Notes: {{device.notes}}

No devices found

iMac 21.5" A1418
  • iMac18,2 Retina 4K Mid 2017: MNDY2LL/A (3.0 GHz Core i5)
  • iMac18,2 Retina 4K Mid 2017: MNE02LL/A (3.4 GHz Core i5)
  • iMac18,2 Retina 4K Mid 2017: MNE02LL/A (3.6 GHz Core i7)
iMac 21.5" A2116
  • iMac19,2 Retina 4K Early 2019: MRT32LL/A (3.6 GHz Core i3)
  • iMac19,2 Retina 4K Early 2019: MRT42LL/A (3.0 GHz Core i5)
  • iMac19,2 Retina 4K Early 2019: BTO (3.2 GHz Core i7)
