LCD Display eDP Cable, non-Retina (30/30-Pin)



$14.10 – $15.95

Clear
SKU: 15CA-P00 Categories: , , , , , , Tags: ,

Description

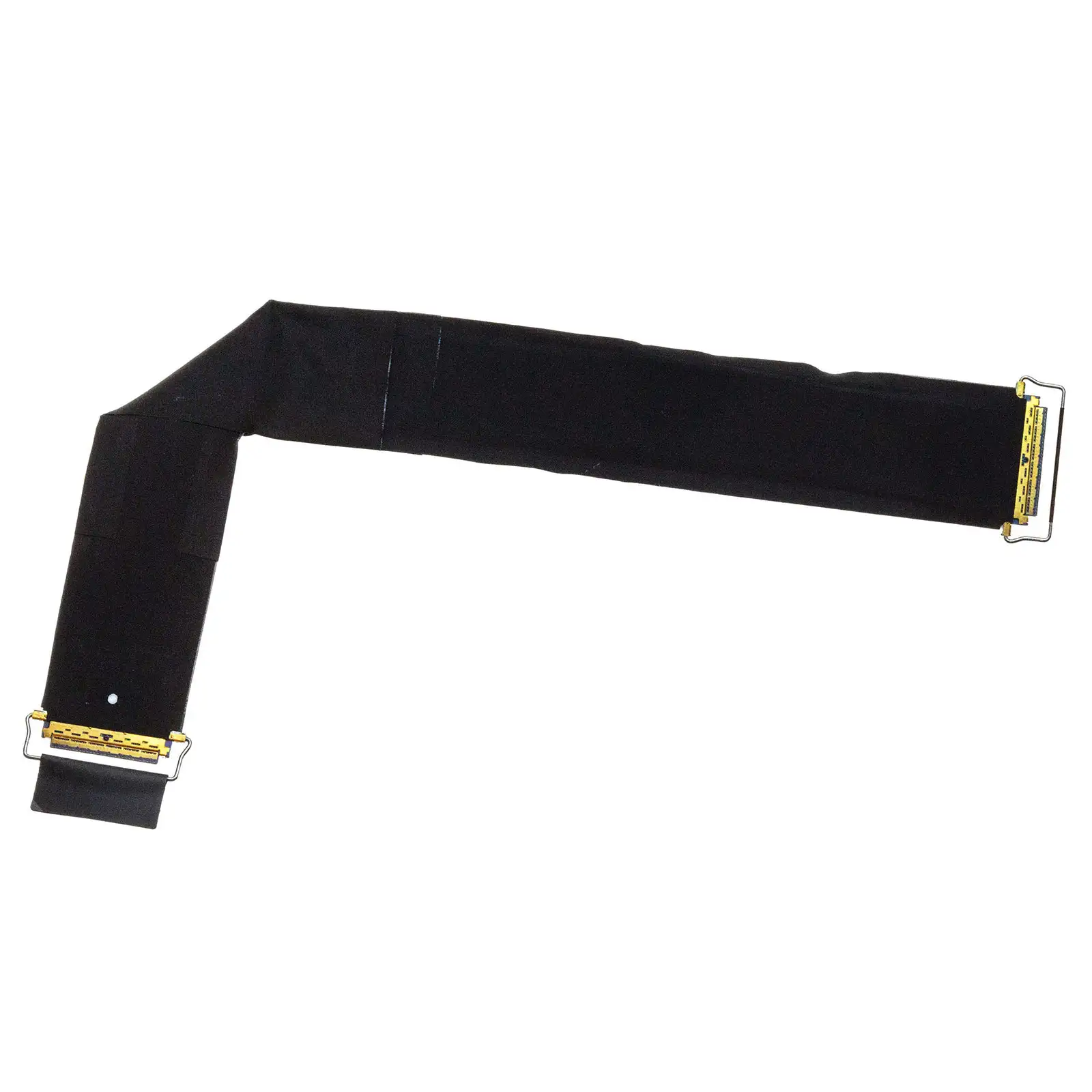

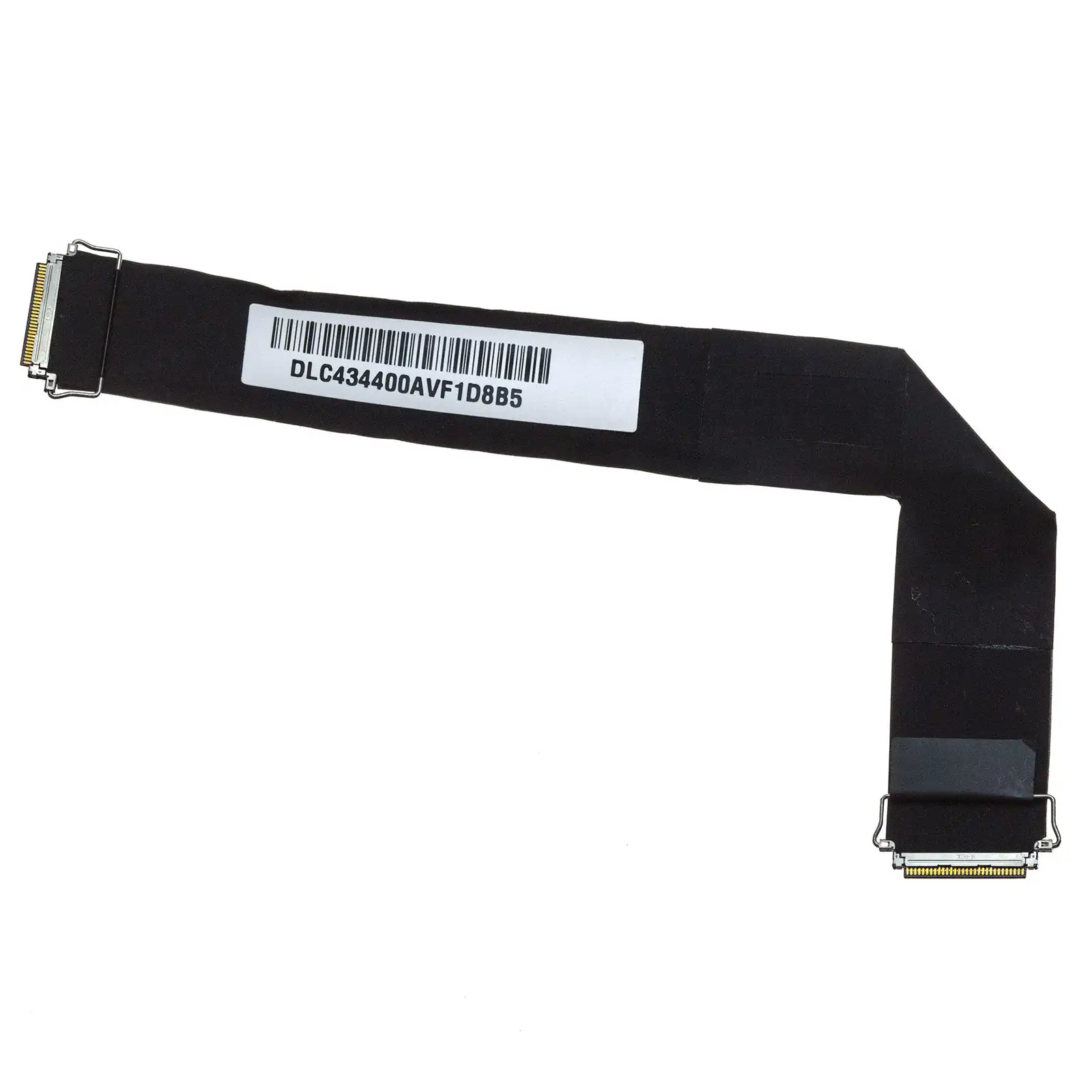

  • This cable connects a non-Retina LCD display (1920x1080 res.) with 30-pin connector to the 30-pin connector on the logic board.
  • The eDP cable compatibility becomes a bit confusing for the most recent releases of the model A1418 iMac 21.5, and this cable will only work for two very specific iMac computers.
  • This cable is compatible with the Late 2015 iMac 21.5" with standard (non-Retina) display and more specifically, only with iMacs that have the 1.6GHz Core i5 processor option.
  • This cable is also compatible with the Mid 2017 iMac 21.5" computers with a standard (non-Retina) LCD display assembly.

What's Included

  • 1 - Embedded DisplayPort (eDP) Cable

Identifying Numbers

  • APN : 923-00566

    Apple Part Numbers

    • Created for internal Apple use.
    • Never visible on the item.

Warranty

Compatibility

Find your device to verify compatibility.

Not Compatible

Compatible

{{device.apple_device}}

{{device.apple_device}}
Model Number: {{formatString(device.model_number)}}
Order Number: {{formatString(device.order_number)}}
Model Identifier: {{formatString(device.model_identifier)}}
EMC Number: {{formatString(device.emc_number)}}
Notes: {{device.notes}}

No devices found

iMac 21.5" A1418
  • iMac16,1 Late 2015: MK142LL/A (1.6 GHz Core i5)
  • iMac18,1 Mid 2017: MMQA2LL/A (2.3 GHz Core i5)
