Logic Board (1.6GHz i5, 8GB, SSD Conn.)

Used Condition



Only 1 left in stock

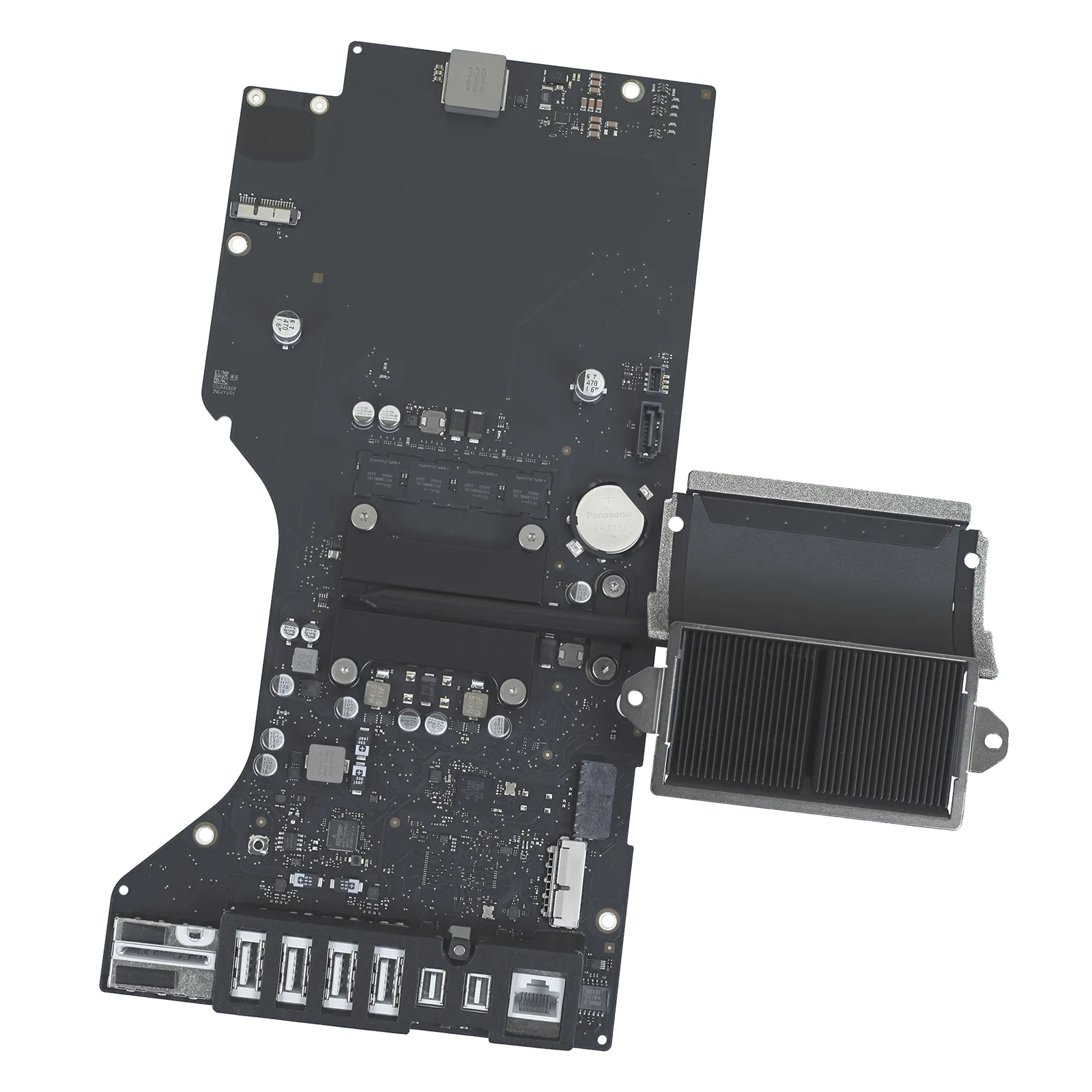

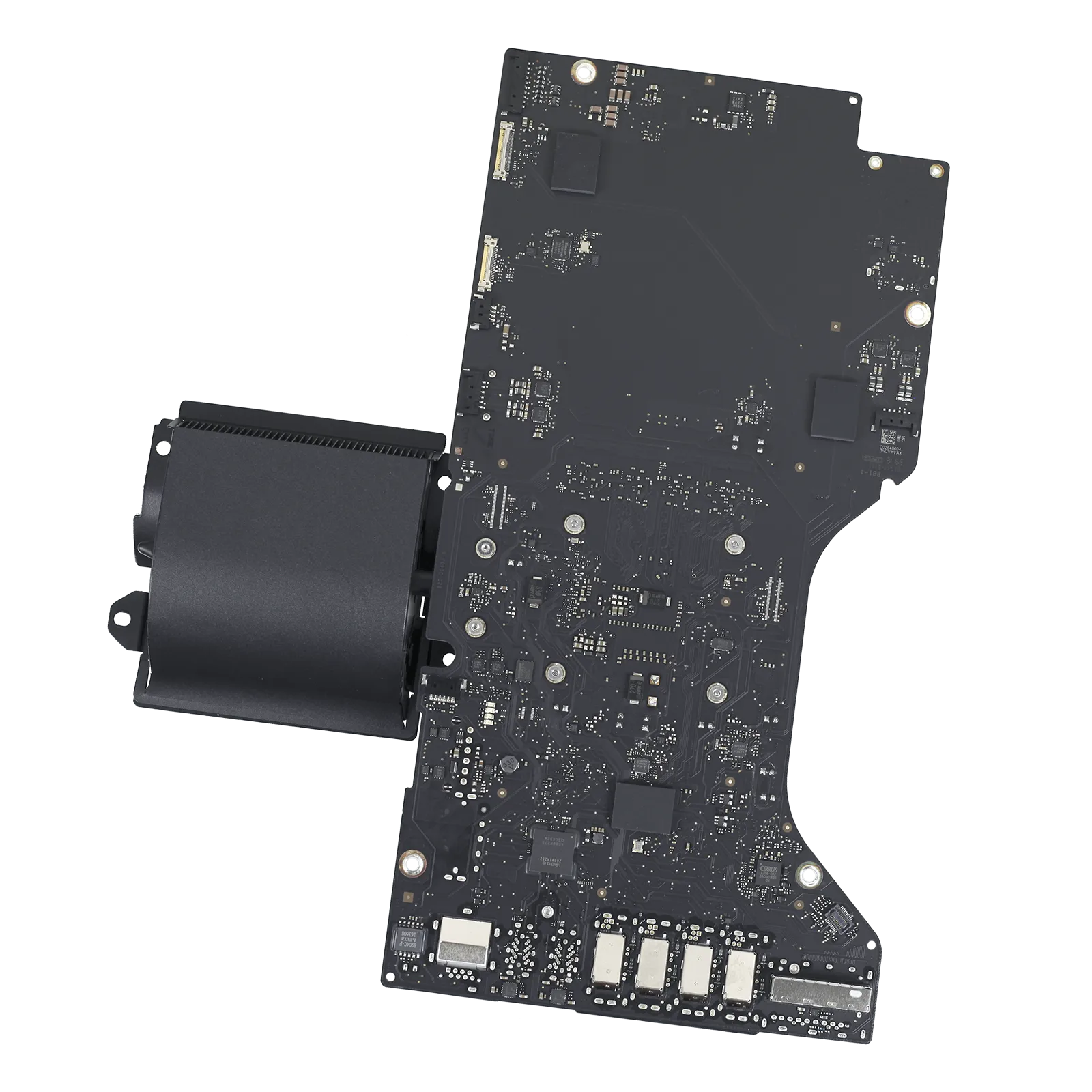

  • This logic board includes a 1.6GHz Intel Core i5-5250U processor, 8GB onboard memory and heatsink attached.
  • Versions of this board exist with and without SSD connector, and this board does include the PCIe connector and can utilize Apple's blade SSDs.
  • The Late 2015 iMac 21.5" was available with standard and Retina 4K LCD displays, but this board is only compatible with the standard display with 1920x1080 resolution, and only if the iMac originally included the 1.6GHz i5 processor option.

What's Included

  • 1 - Logic board
  • 1 - Heatsink

Identifying Numbers

  • APN : 661-02885

    Apple Part Numbers

    • Created for internal Apple use.
    • Never visible on the item.
  • PPN : 820-00430-A

    Printed Part Numbers

    • Created by manufacturers during production.
    • Always visible on the item.

Tech Specs

  • Onboard CPU: 1.6GHz Intel Core i5-5250U
  • Onboard GPU: Intel HD Graphics 6000
  • Onboard RAM: 8GB LPDDR3 (1867MHz)


Lifetime - We guarantee this product for as long as you have it.


Find your device to verify compatibility.

Not Compatible




Model Number: {{formatString(device.model_number)}}
Order Number: {{formatString(device.order_number)}}
Model Identifier: {{formatString(device.model_identifier)}}
EMC Number: {{formatString(device.emc_number)}}
Notes: {{device.notes}}

No devices found

iMac 21.5" A1418
  • iMac16,1 Late 2015: MK142LL/A (1.6 GHz Core i5)
